Read Zone (Extractor Type)

⚠	This article was migrated from an older version and has not been updated for the current version of Grooper. This tag will be removed upon article review and update.

This article is about the current version of Grooper. Note that some content may still need to be updated.
2025	2023	2021	2.90

Read Zone is an Extractor Type that allows you to extract text data in a rectangular region (called an "extraction zone" or just "zone") on a document. This can be a fixed zone, extracting text from the same location on a document, or a zone relative to a text value (such as a label) or a shape location on the document.

You may download the ZIP(s) below and upload it into your own Grooper environment (version 2023). The first contains a Project with resources used in examples throughout this article. The second contains one or more Batches of sample documents. Media:2023 Wiki Read-Zone Project.zip Media:2023 Wiki Read-Zone Batches.zip

About

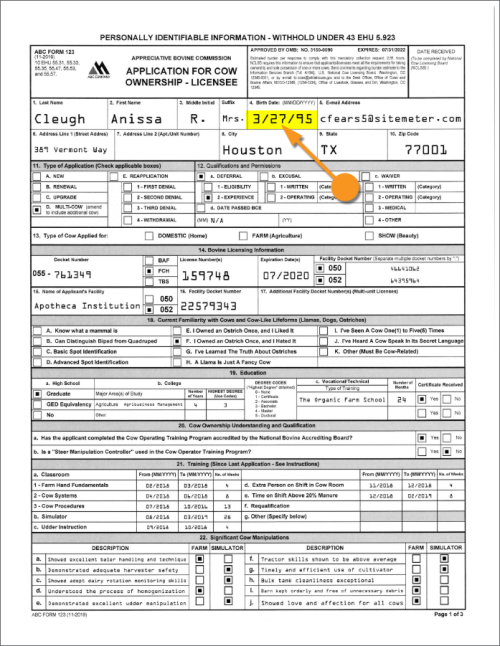

Read Zone is useful for extracting data from highly structured documents. If a document's structure is fixed, it's going to have the same fields in the same physical location from one document to the next. For instance, the Application for Cow Ownership form to the right seems to be a fairly fixed form. We expect the "Birth Date" listed on the first page to be more or less in the same spot for every single Cow Ownership document. The value itself may change, but there's only so much room that this value can take up on the document. If you can draw a rectangle around the value you want to extract, and the value falls within the boundaries of that rectangle for every single document, extraction may be as simple as just extracting the text in the rectangle's location. This is referred to as "zonal extraction". You draw a zone where the value exists on the page and return the text data falling in the zone.

Read Zone has a few different options for where the box is placed using the Location property. This can be one of four options:

• Fixed Region
• Relative Region
• Text Region
• Shape Region

The Read Zone extractor can optionally re-process the text data with an OCR Profile. This can be used to perform custom OCR on the extracted text.

The text in the zone can also be itself extracted by a Value Extractor. This allows you to break up the document into a smaller portion and run an extractor on just the zone instead of the full document. Essentially, you use the Read Zone extractor to create a smaller data instance (from the larger document data instance) and use its Value Extractor property to return data from the smaller data instance.

How To

The Location Property

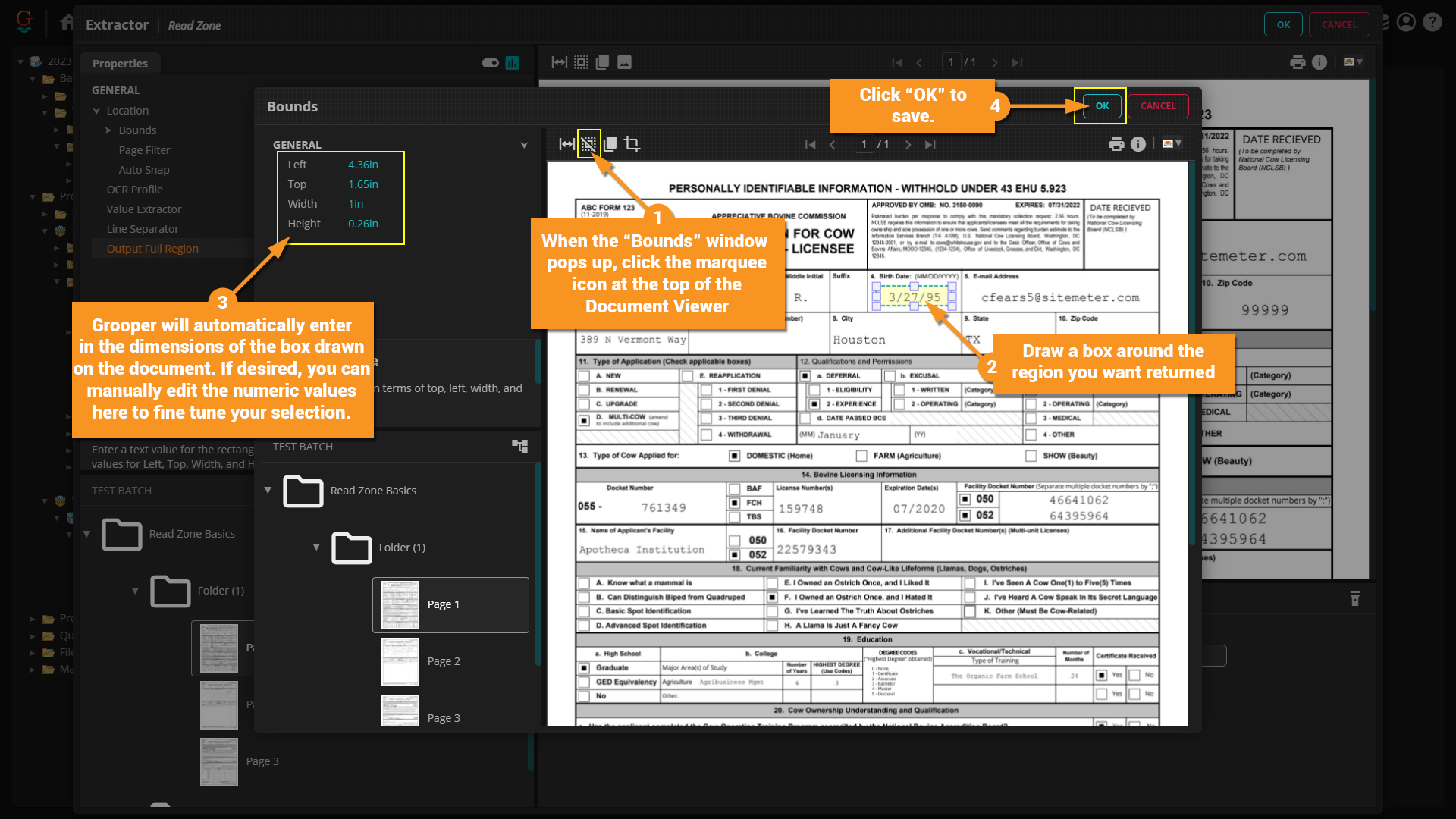

Fixed Region

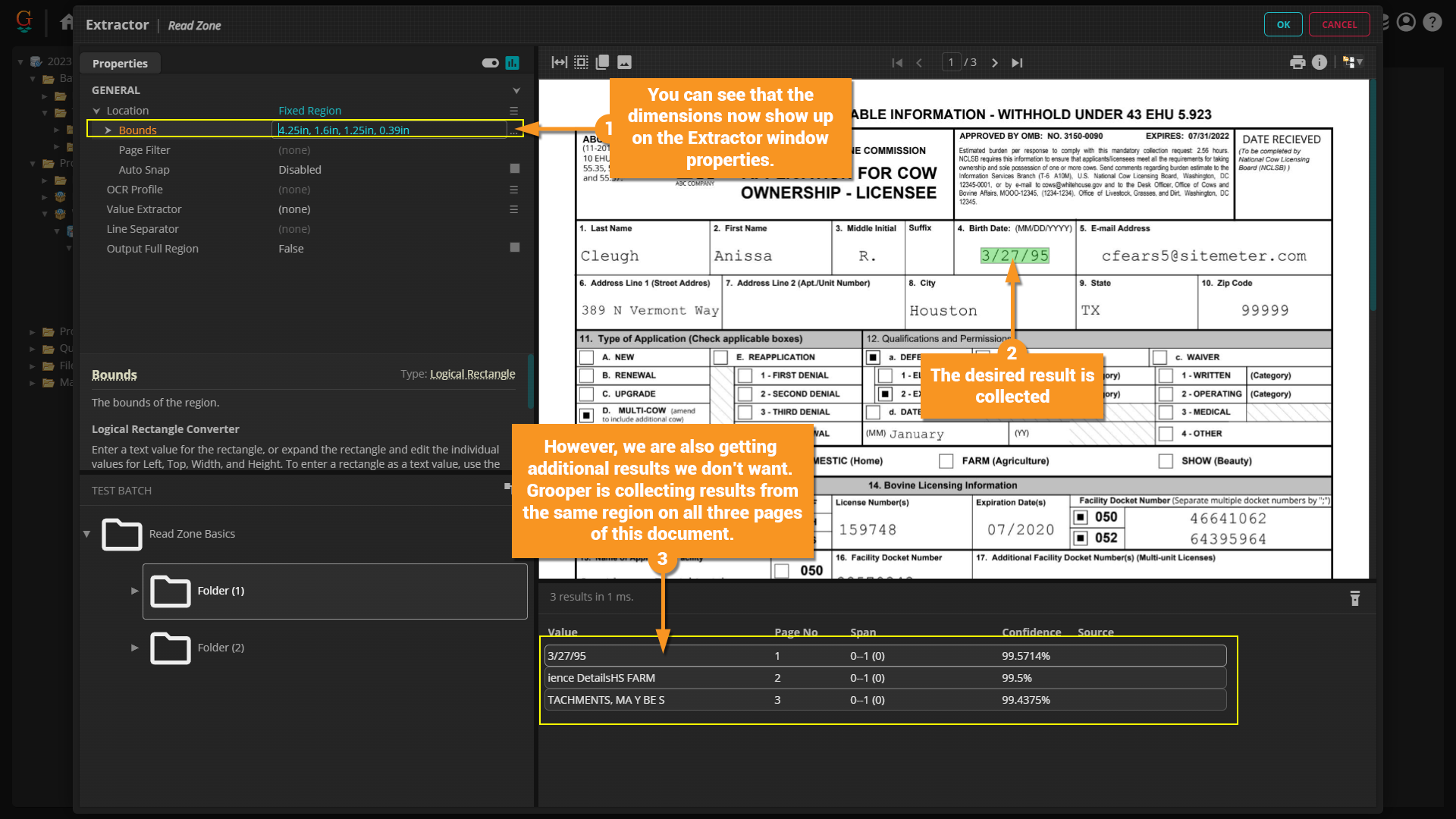

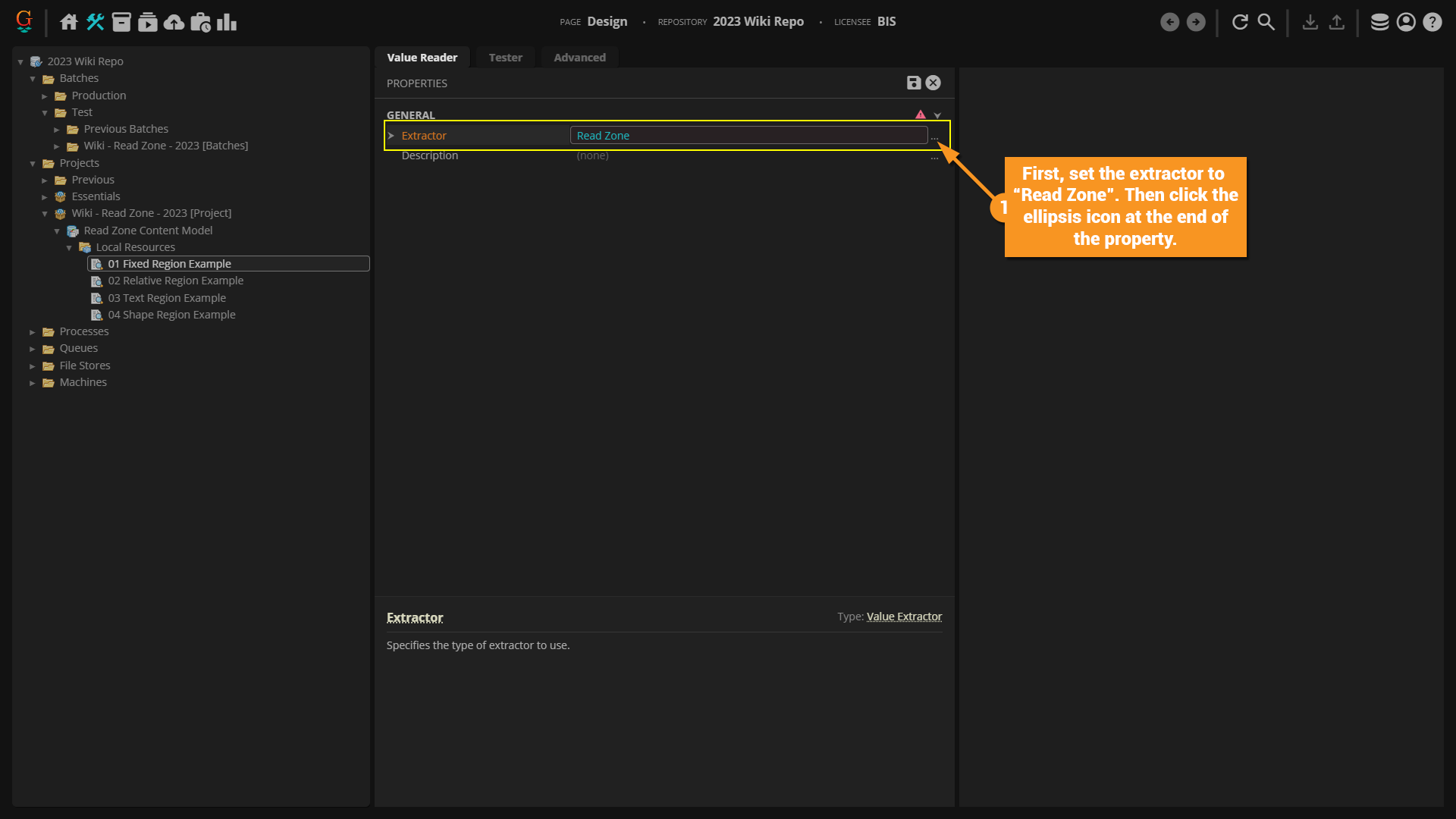

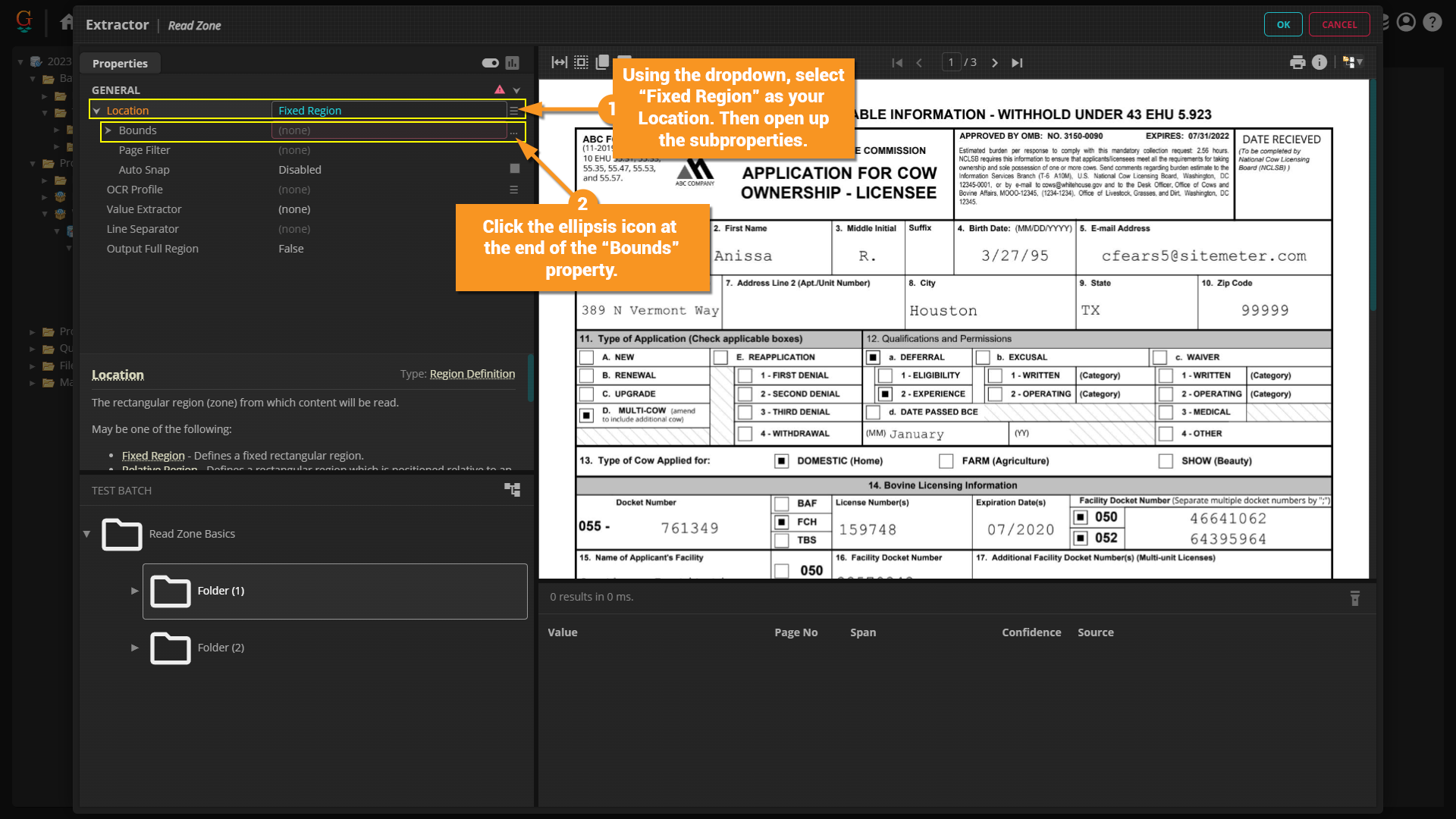

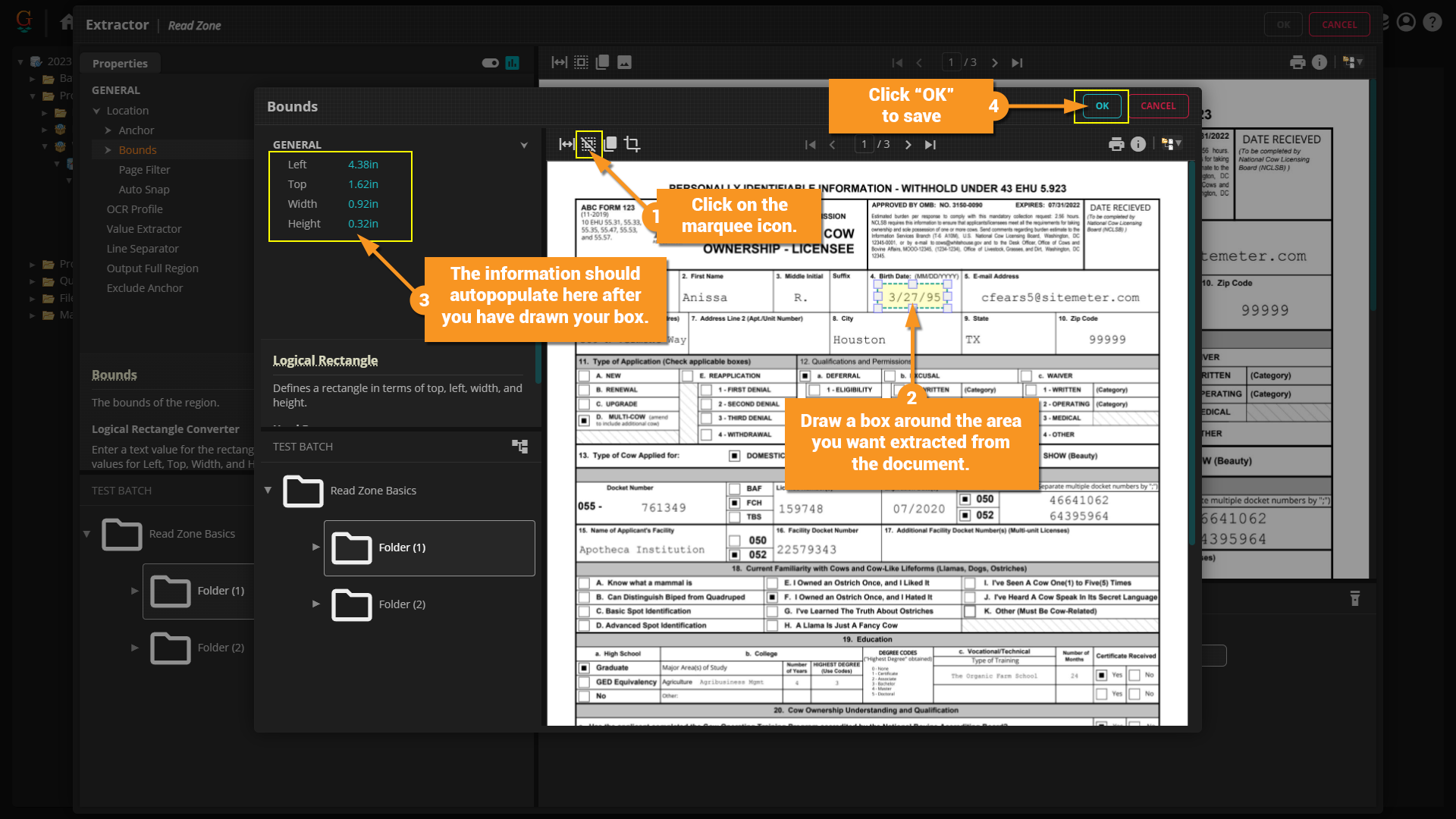

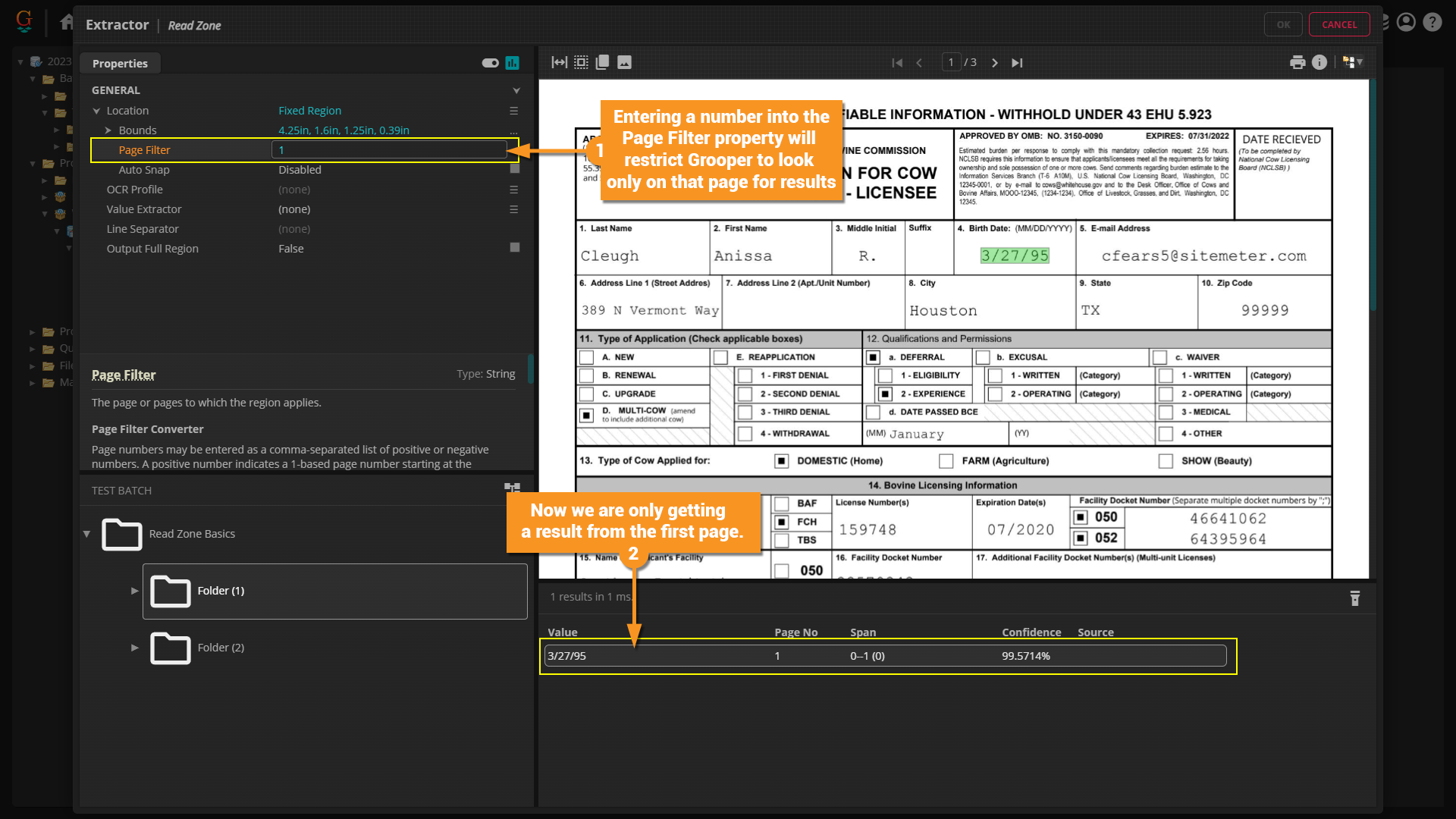

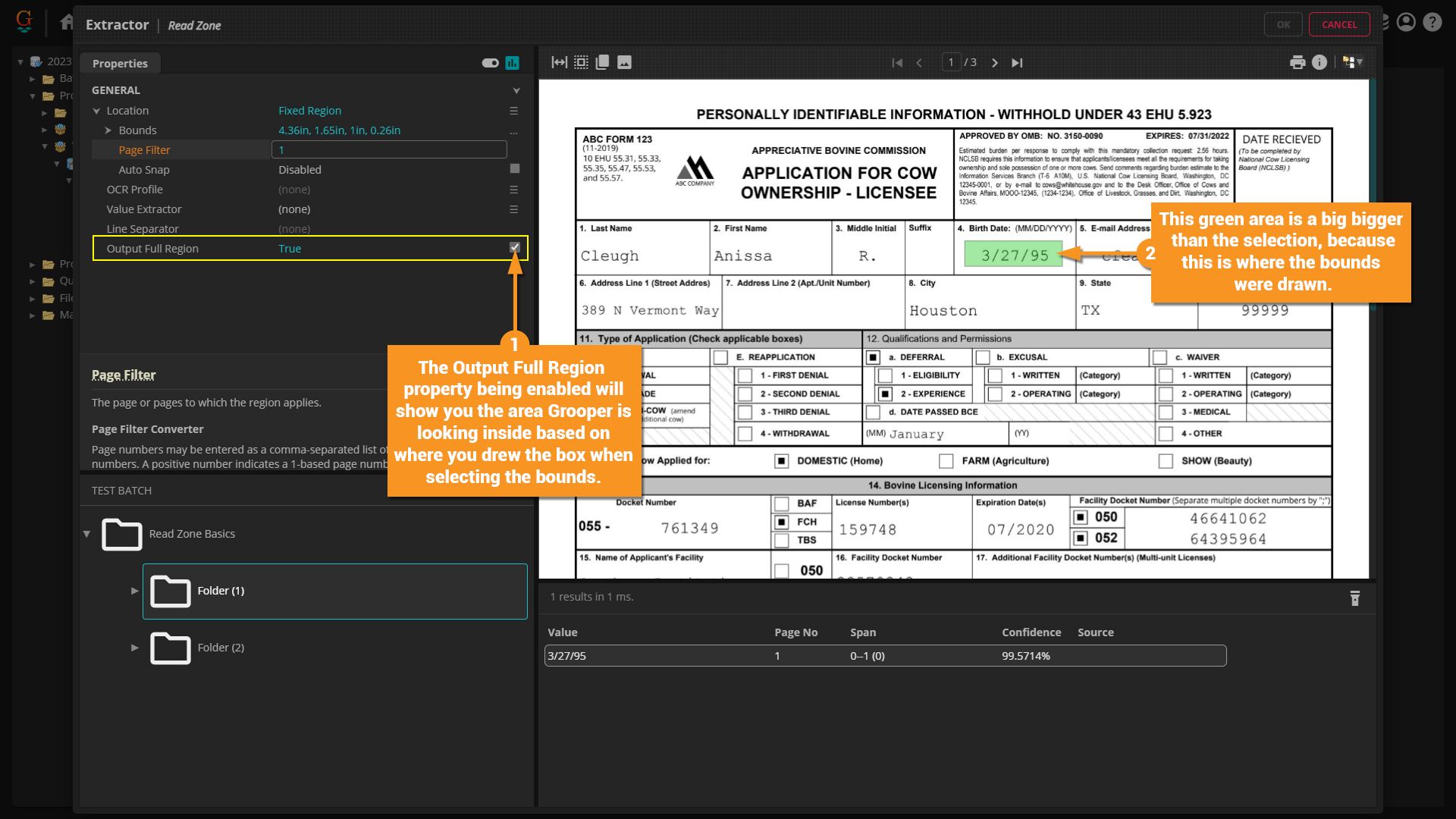

This option is the simplest to set up. As the name implies, the extraction zone will be fixed on the page. It will stay in the same coordinates for every document. All you need to do is draw the box where you want to extract data.

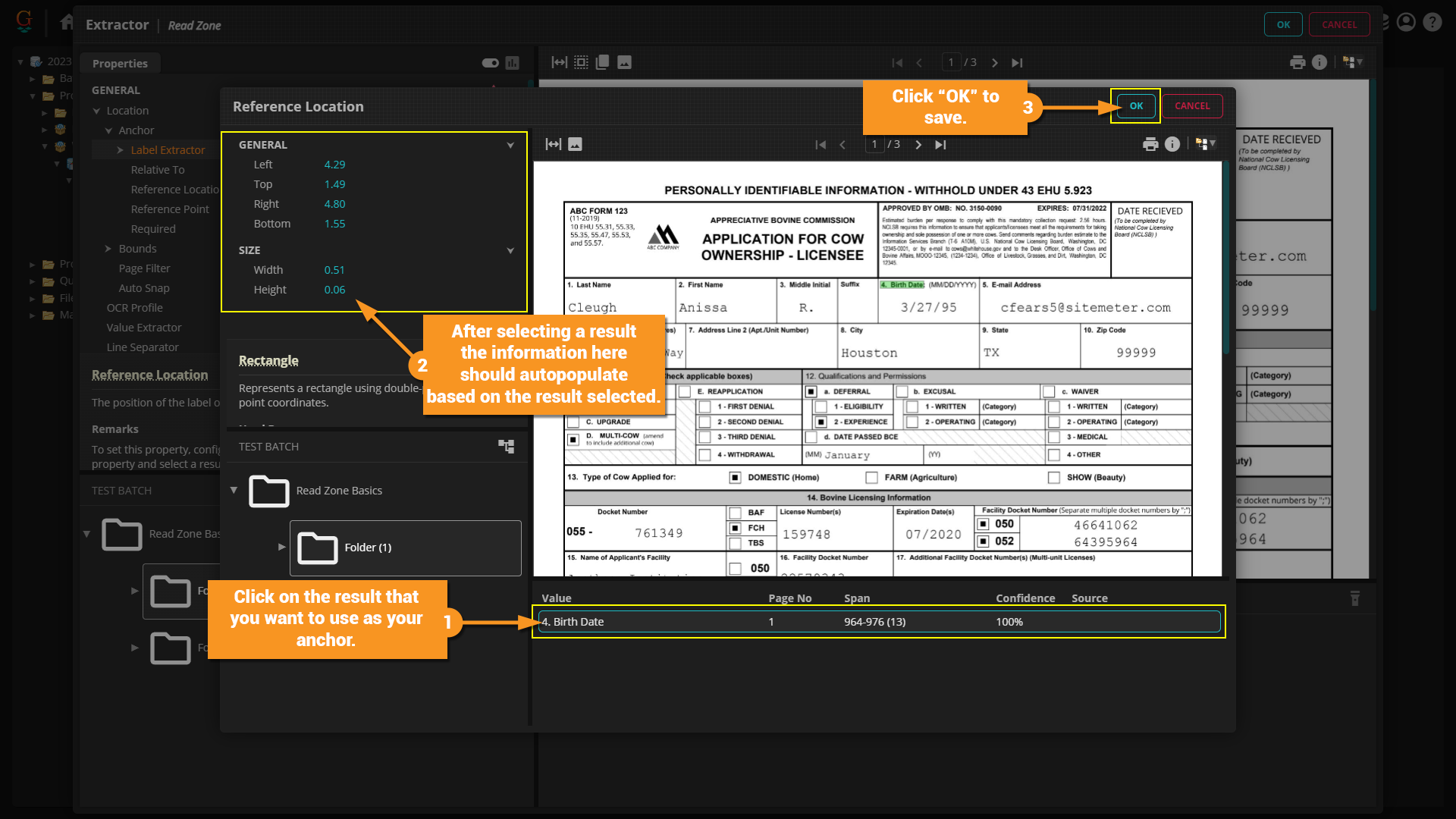

Relative Region

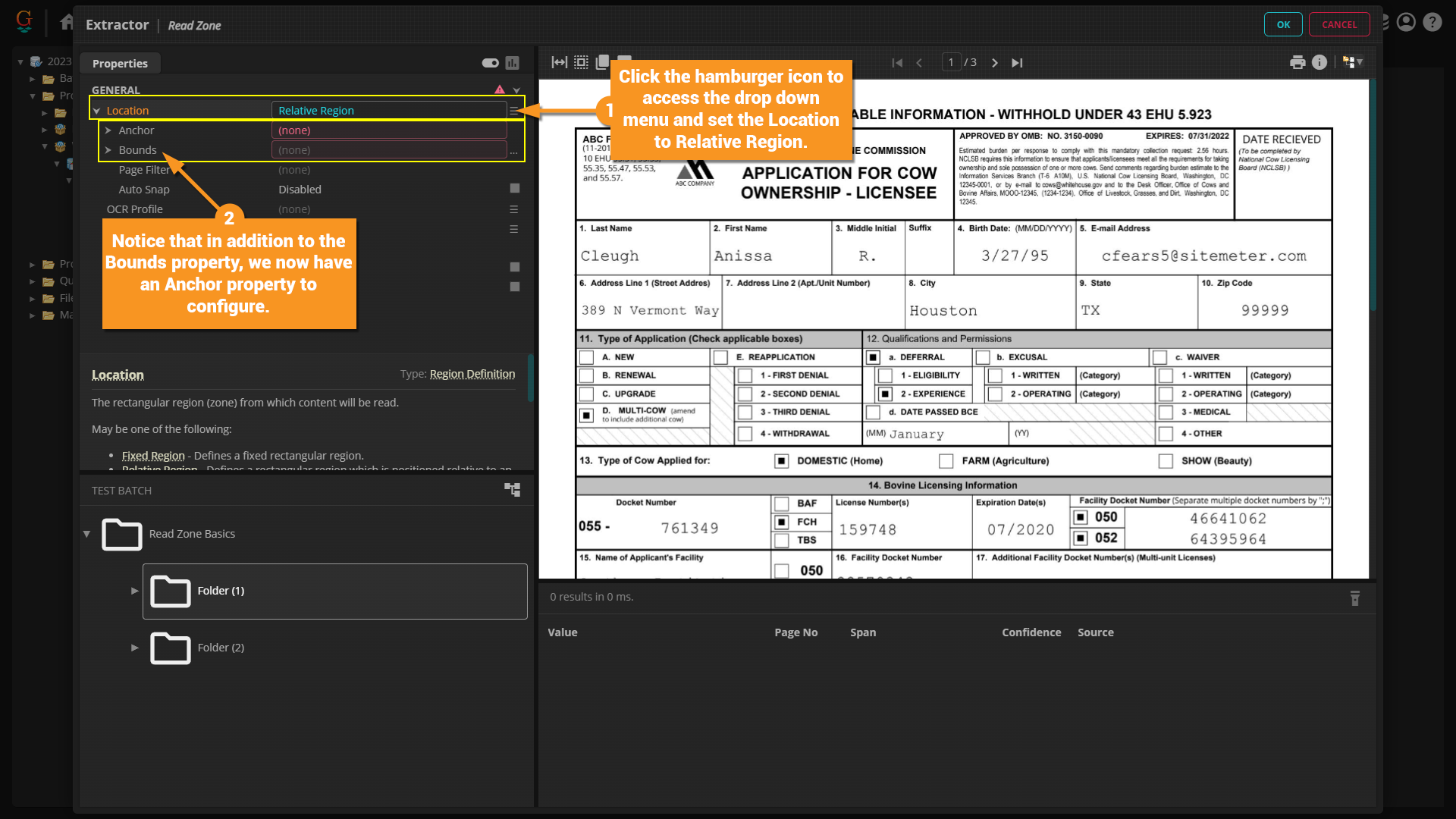

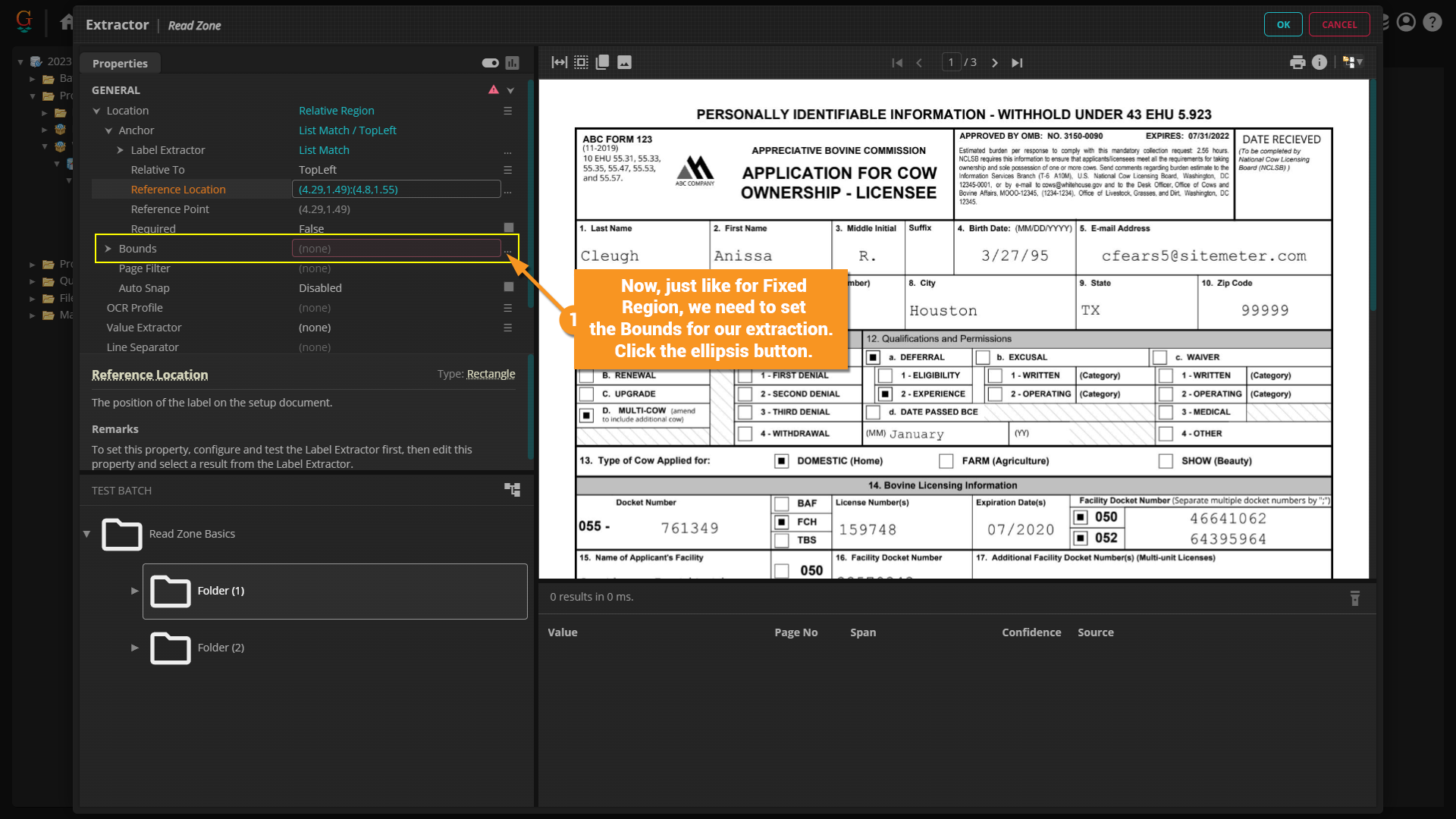

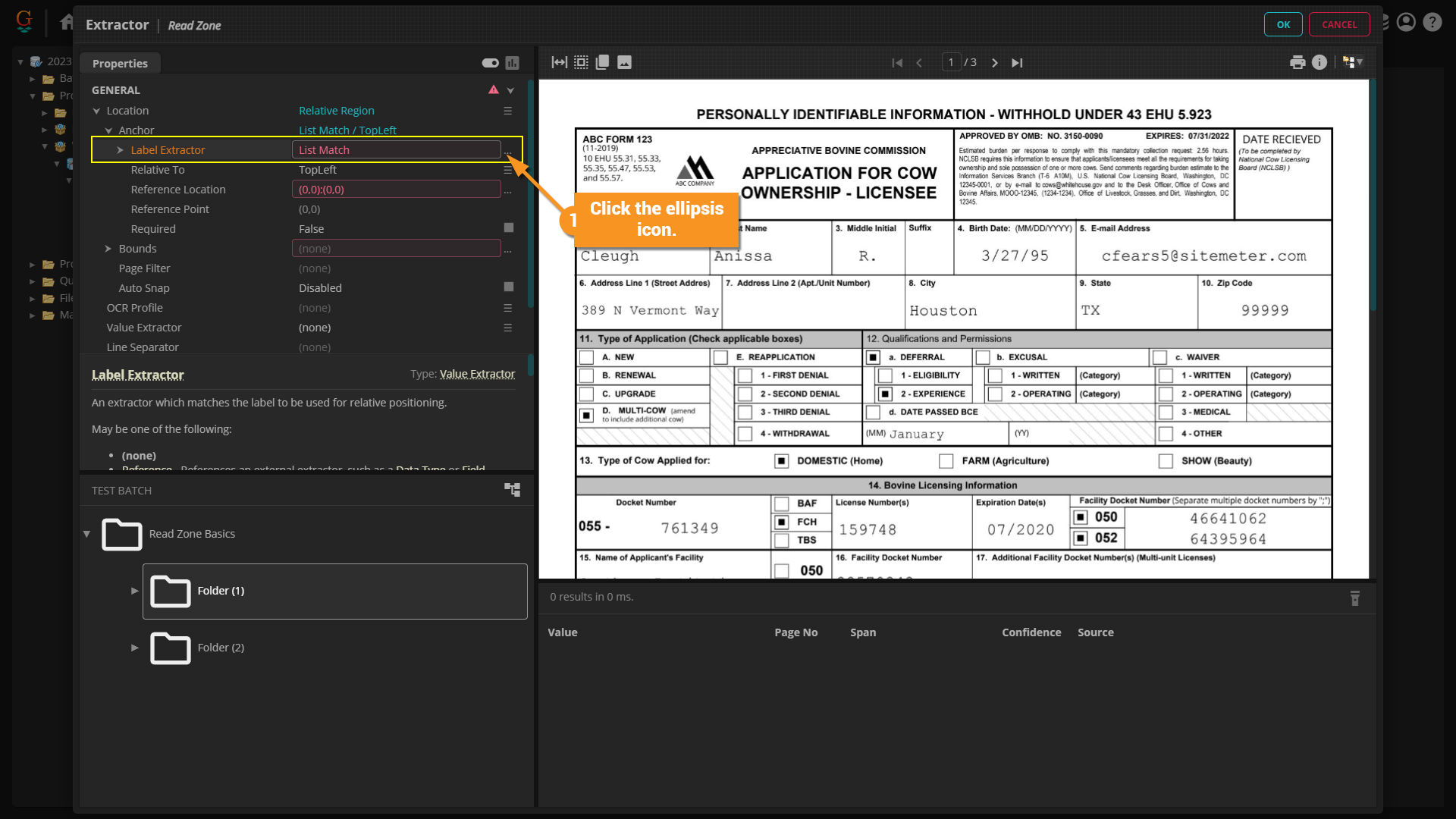

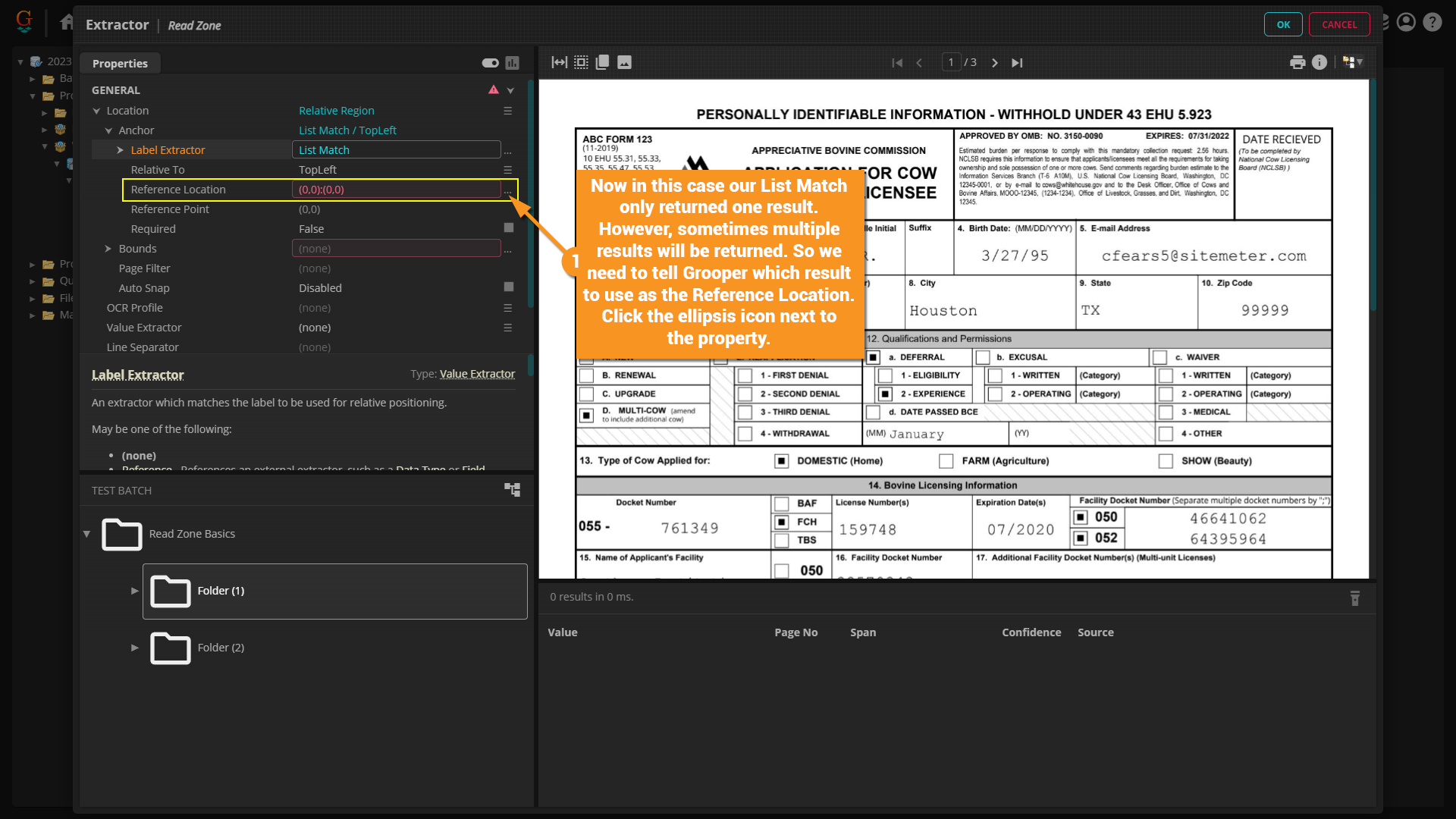

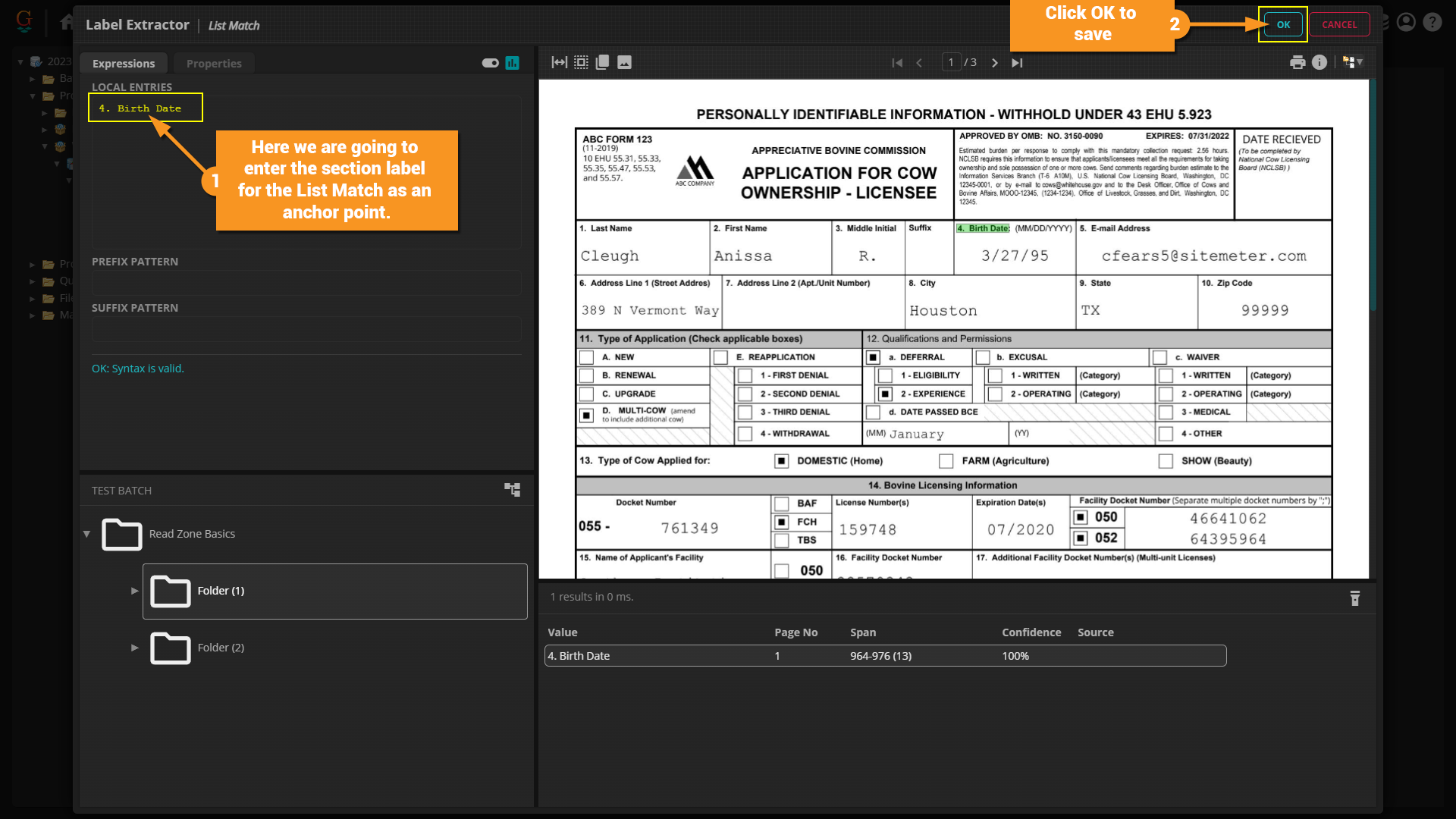

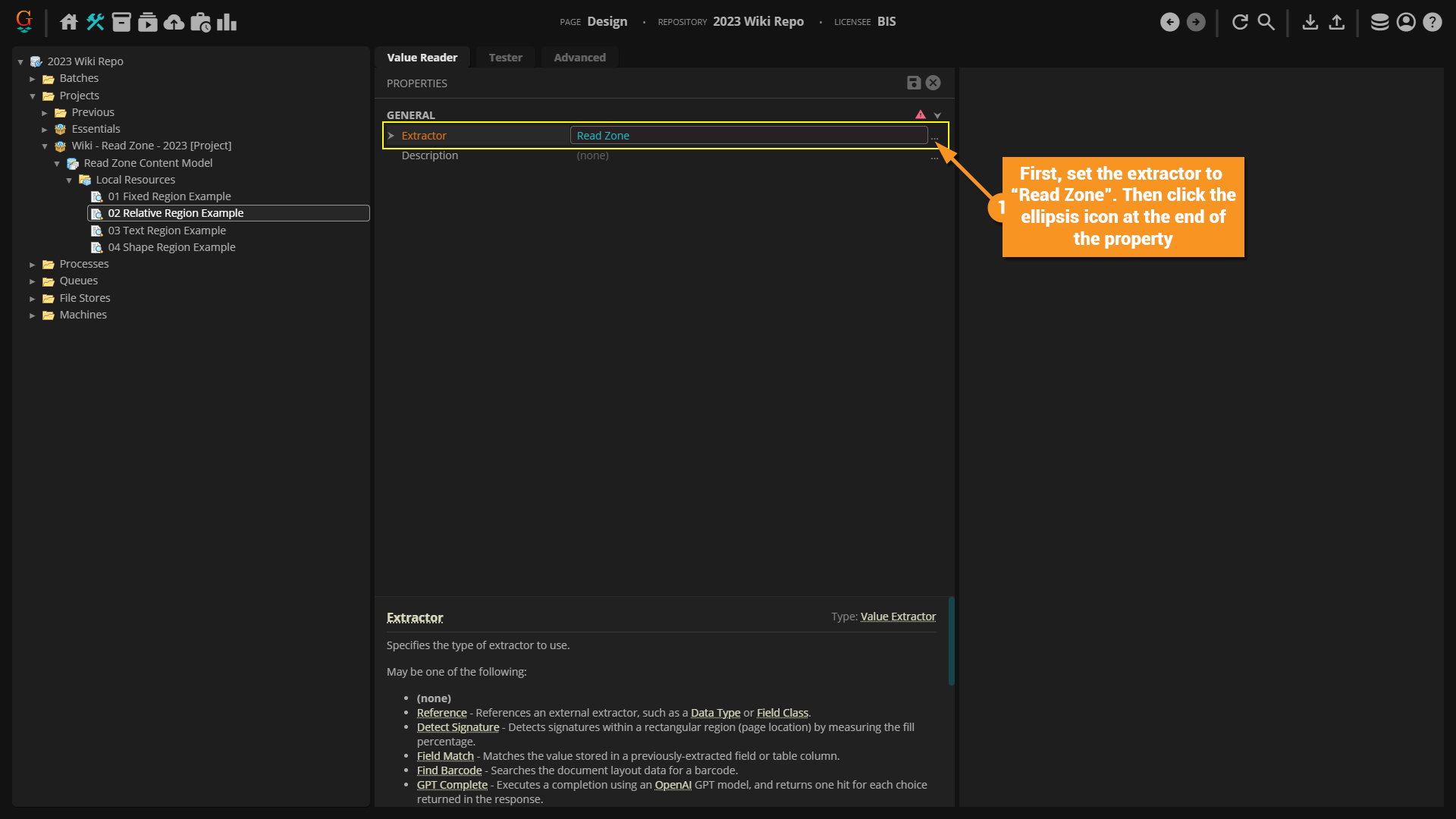

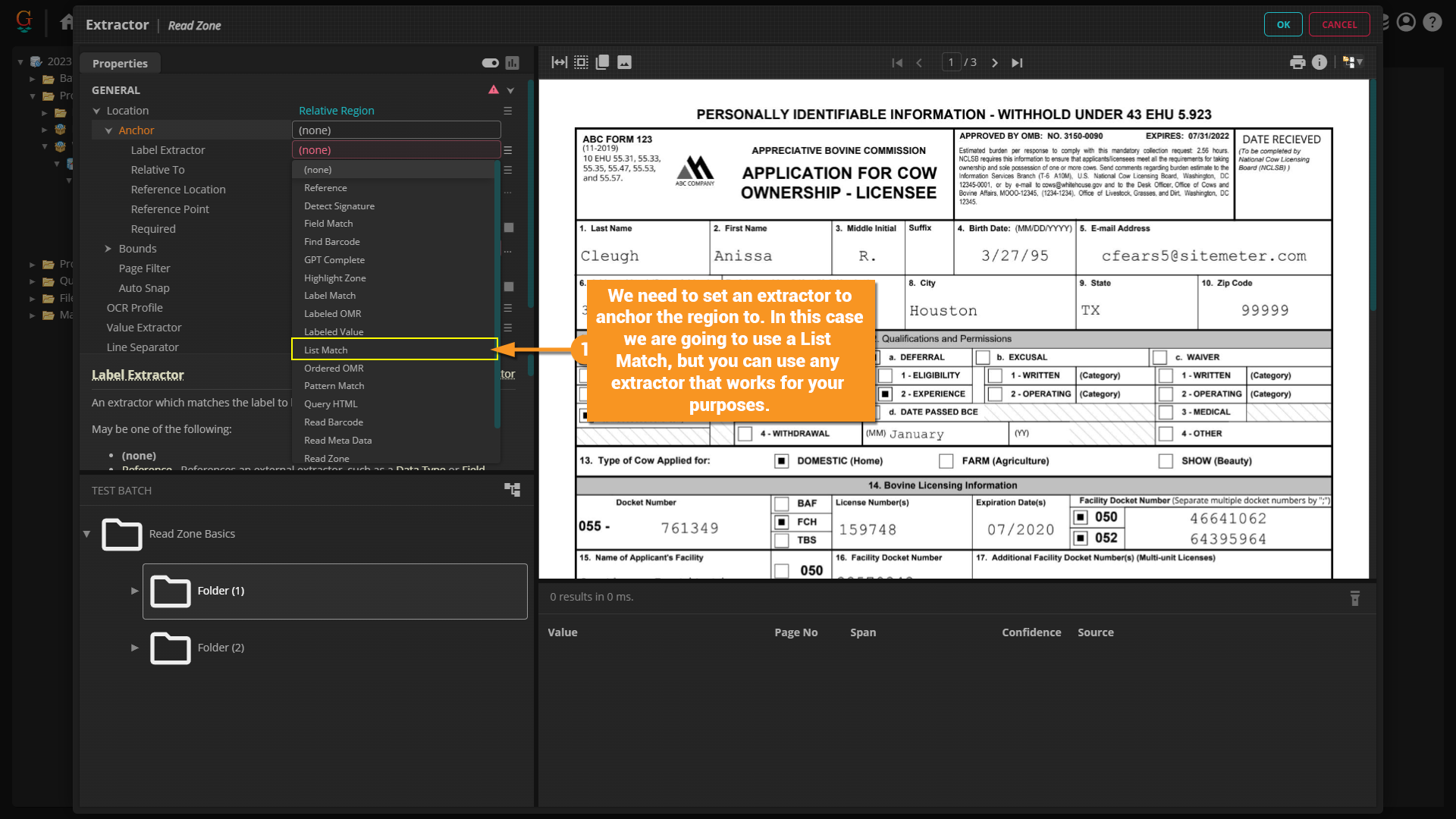

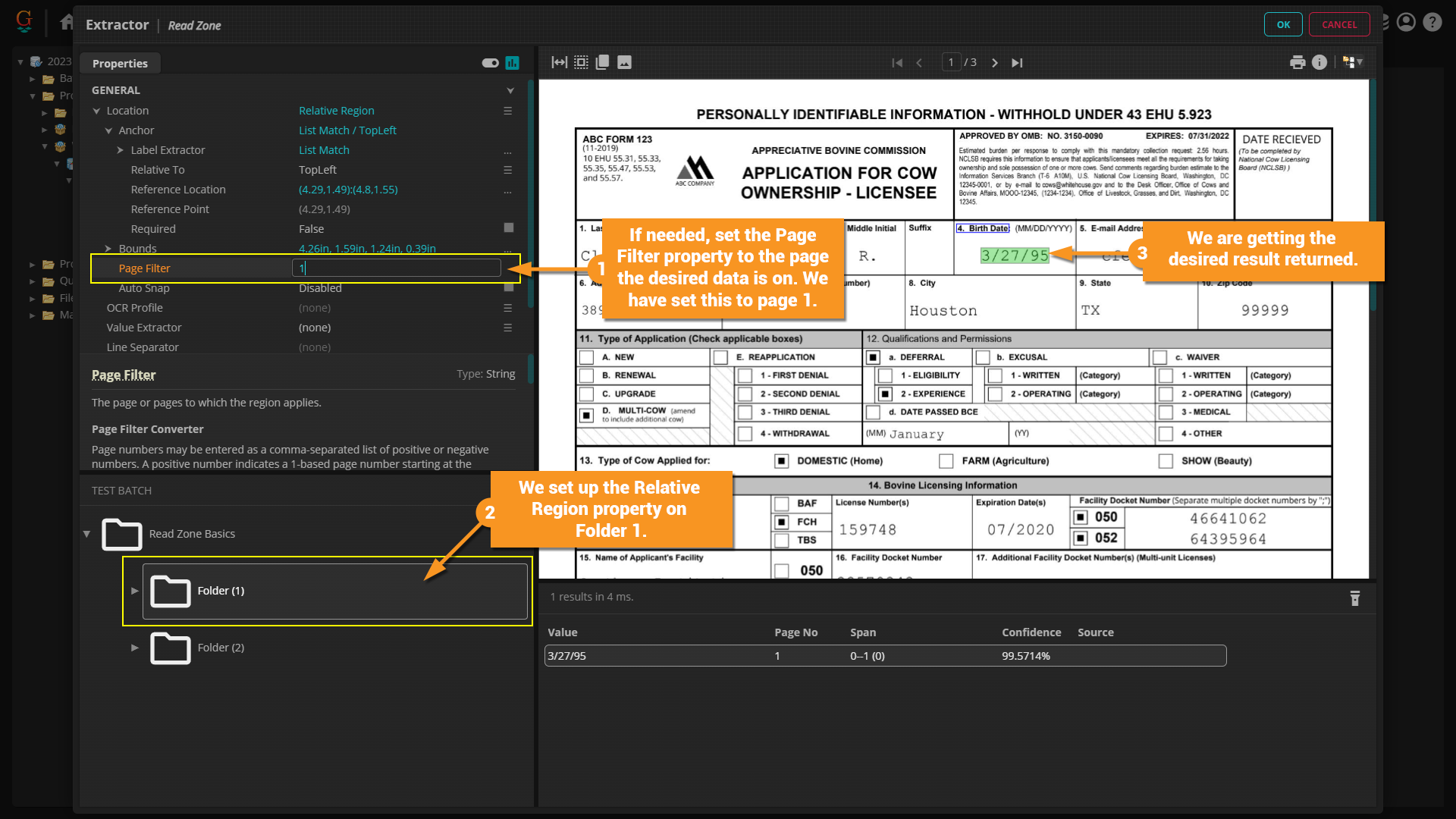

Instead of setting the extraction zone in a fixed location for every document, the Relative Region mode will anchor the zone to a text label on the document. The extraction zone's position will change relative to the label's position on the document, but will still have the same drawn dimensions.

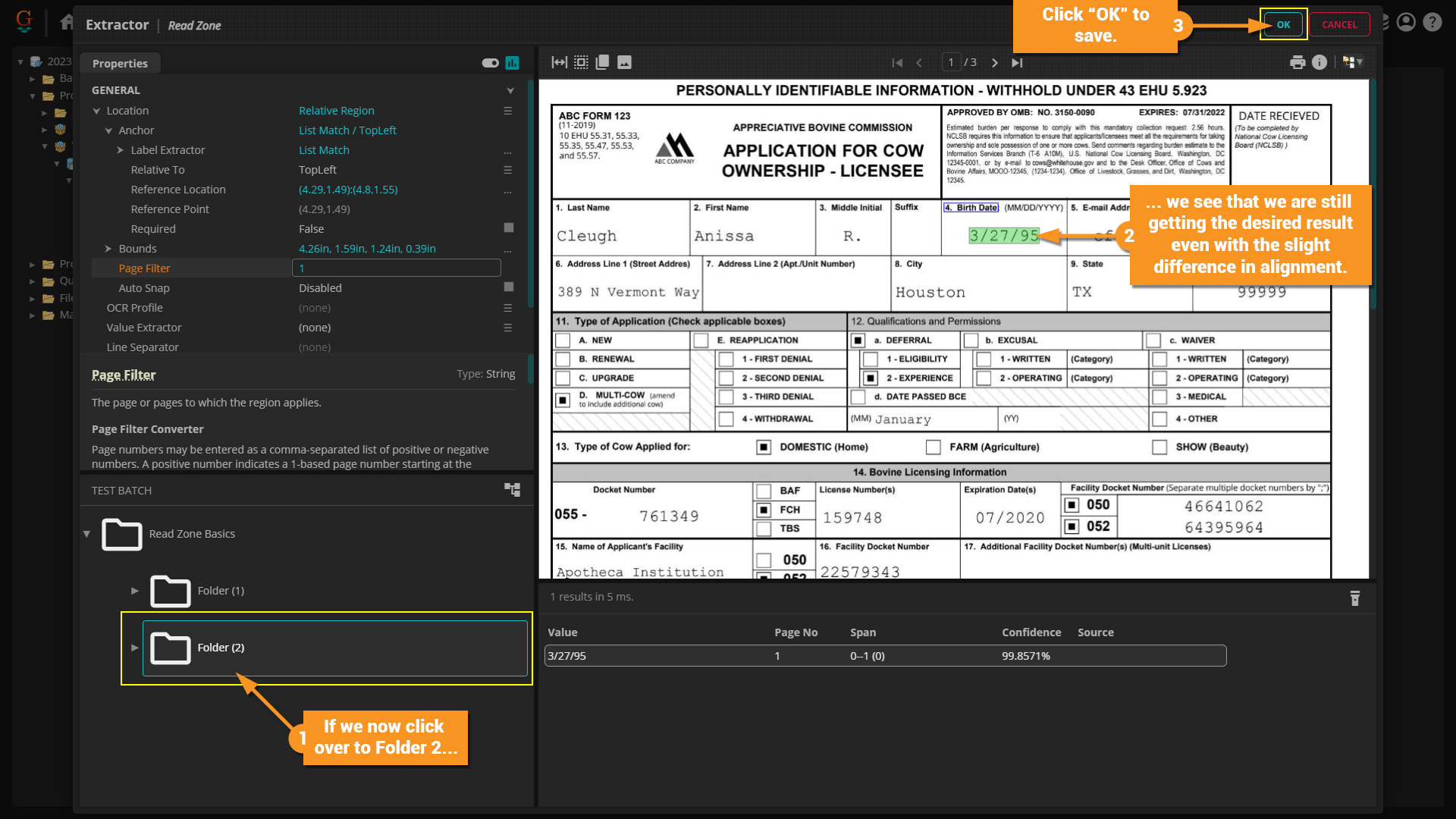

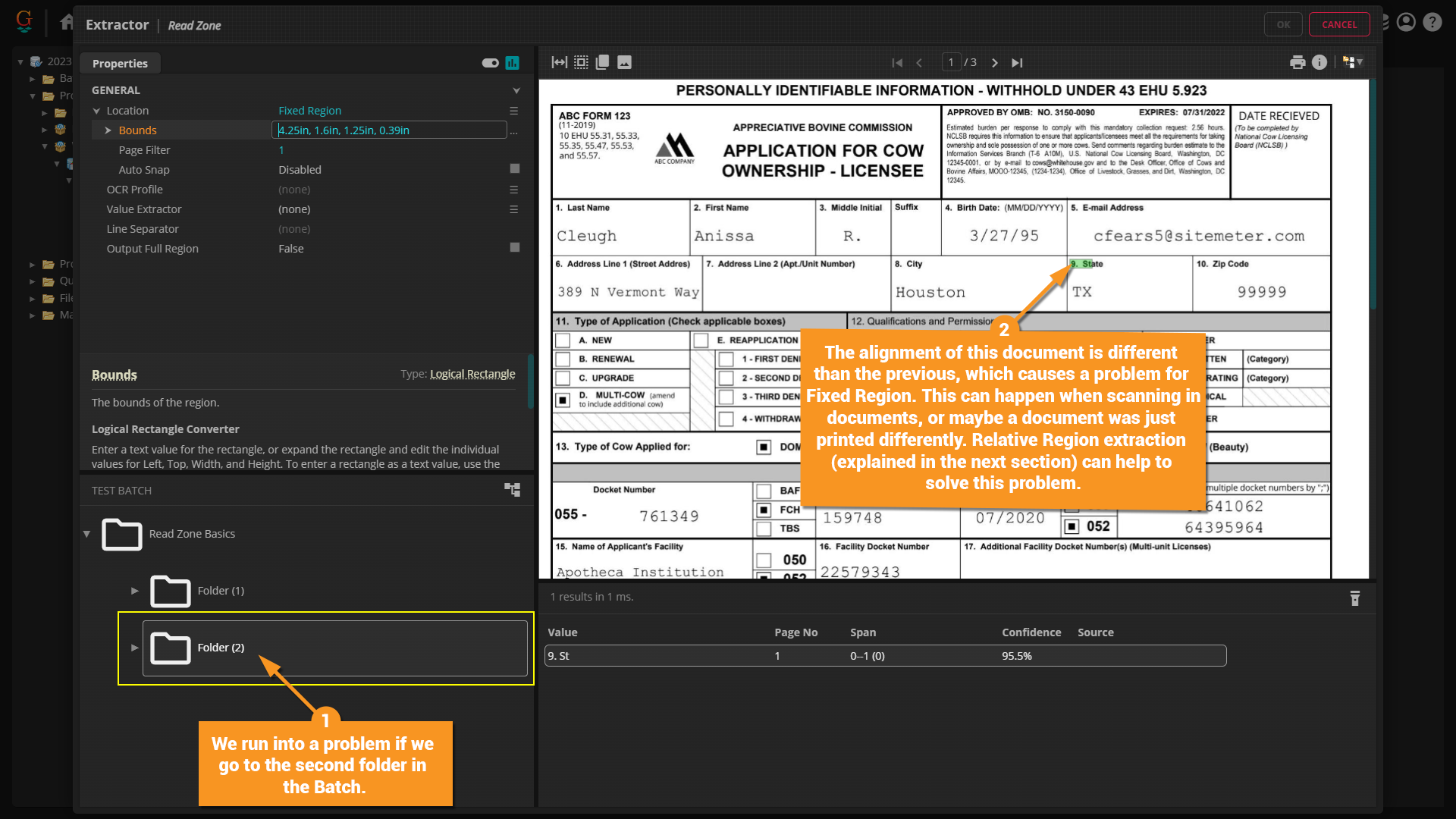

This option is useful to overcome issues arising during scanning printed documents. Slight variations can occur as to where a value is when printing or scanning a document, even for very structured documents. This can cause problems when drawing a single fixed region for the extraction zone. However, if you can anchor the zone off an extractable text value, the zone's position will shift according to that anchor's position.

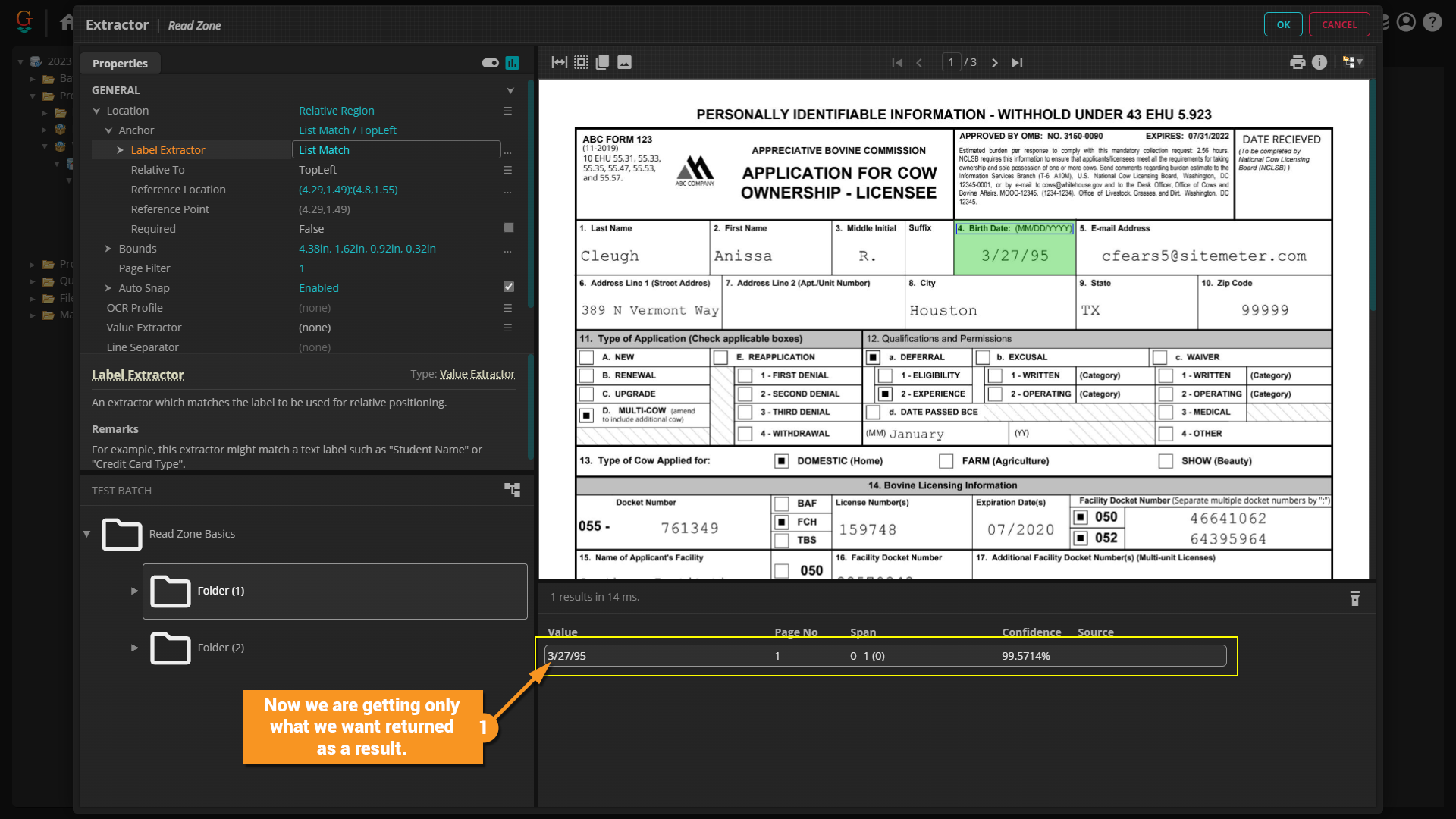

Auto Snap

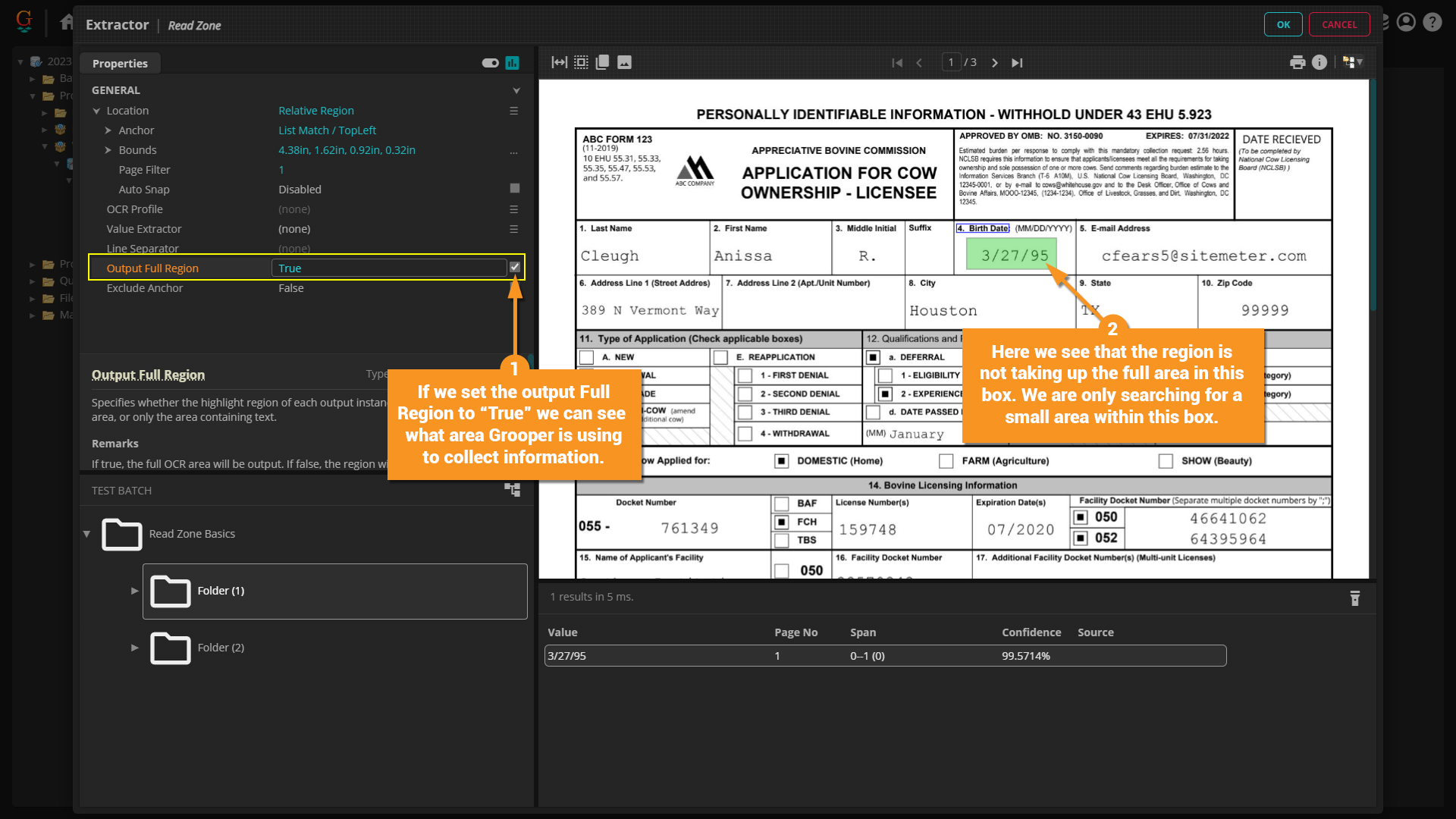

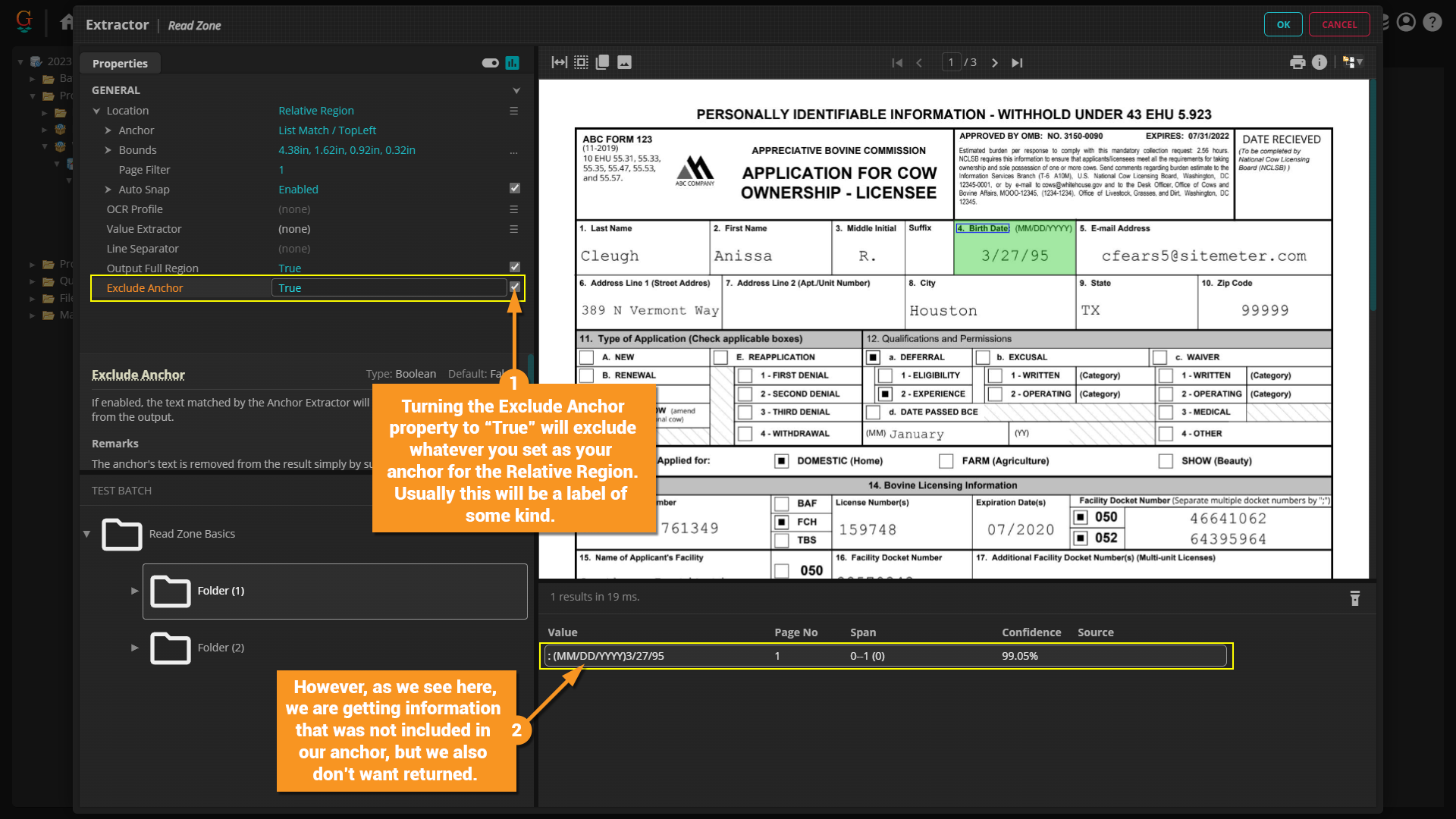

On many documents, such as the Application for Cow Ownership document we have been using in these examples so far, you will have a grid of lines enclosing the data you want to return. This can also be found in things like tables.

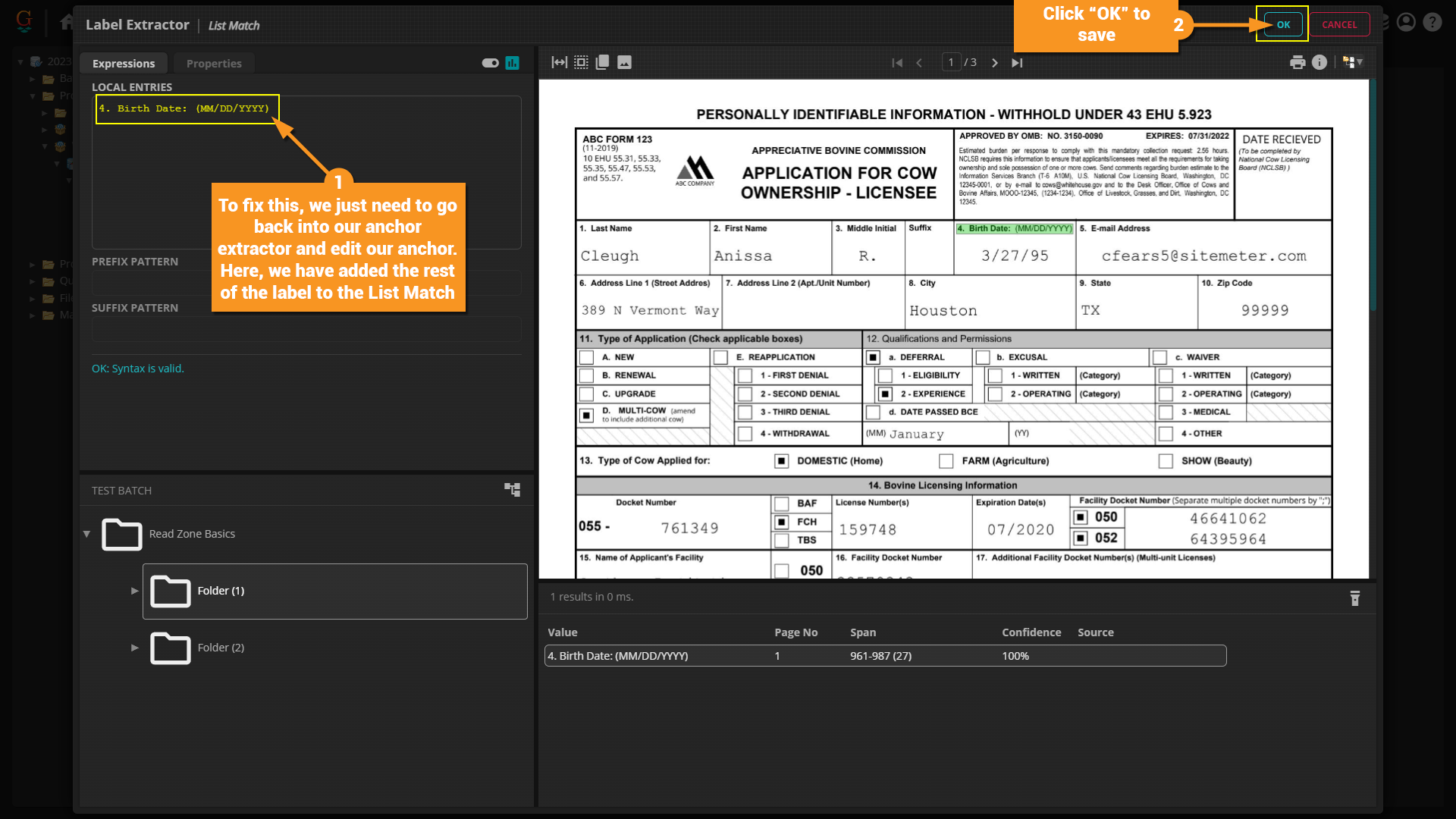

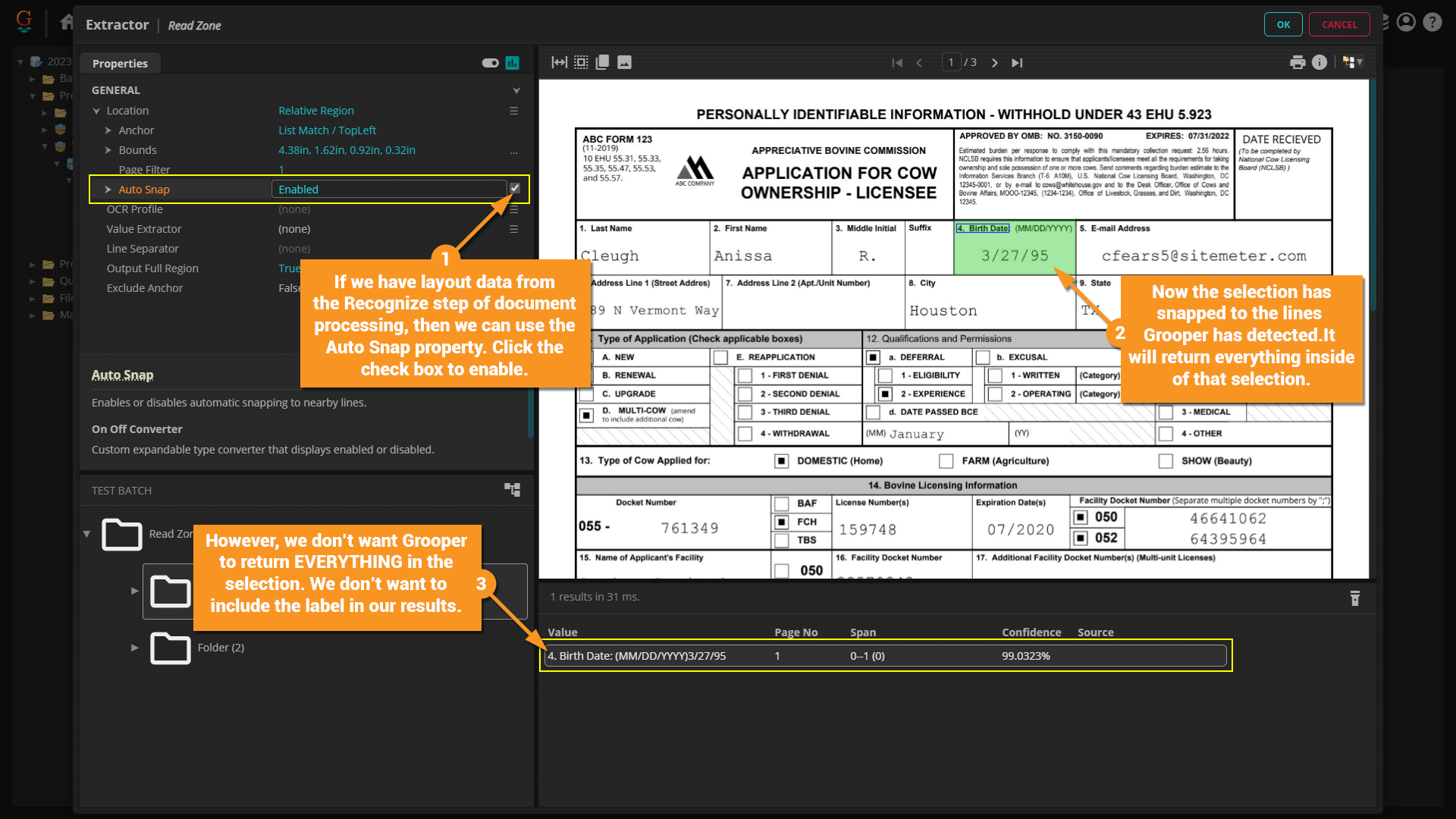

Grooper can use these lines as guides to determine what needs to be extracted. You can use this feature by enabling the Auto Snap property.

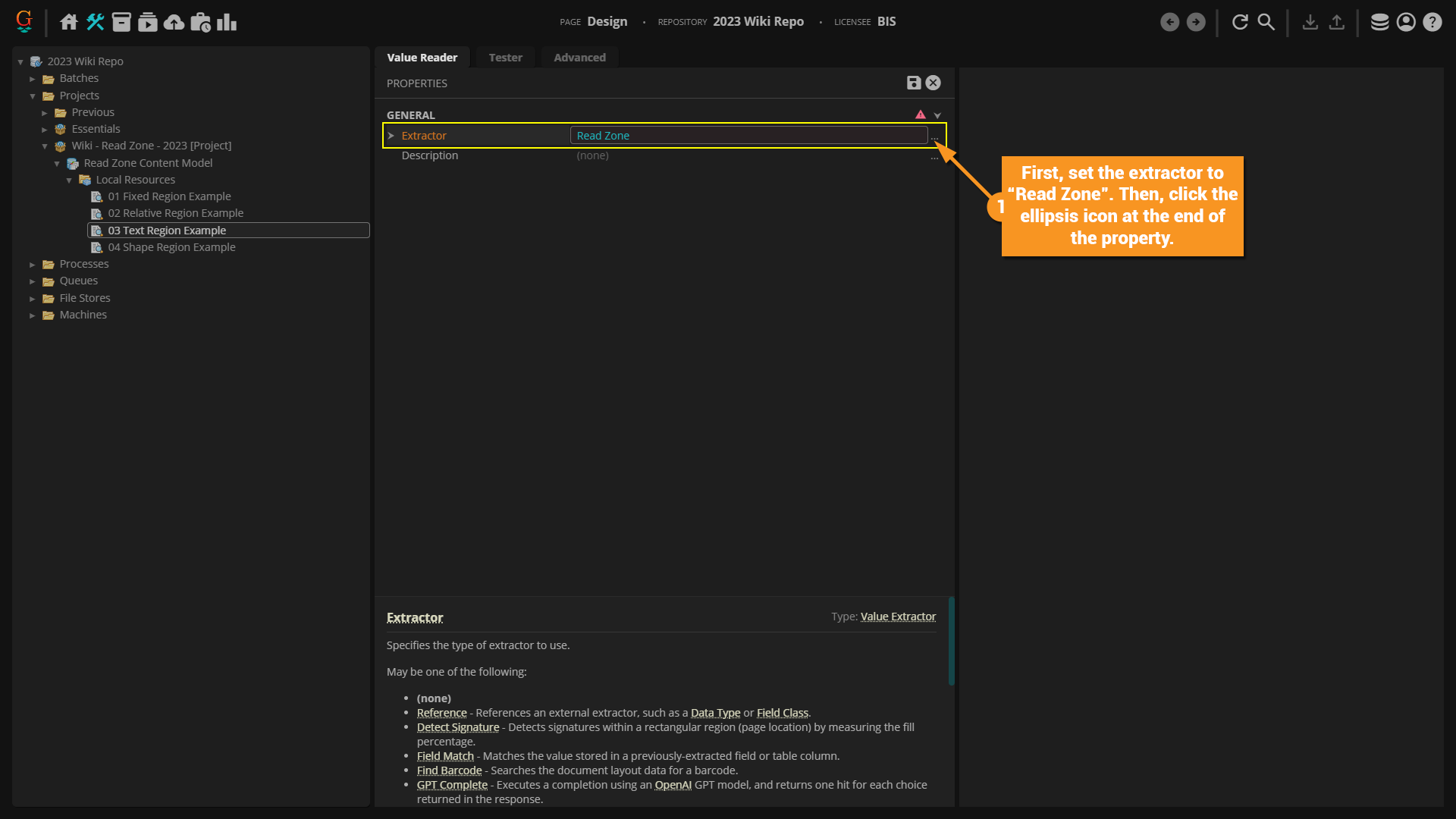

Text Region

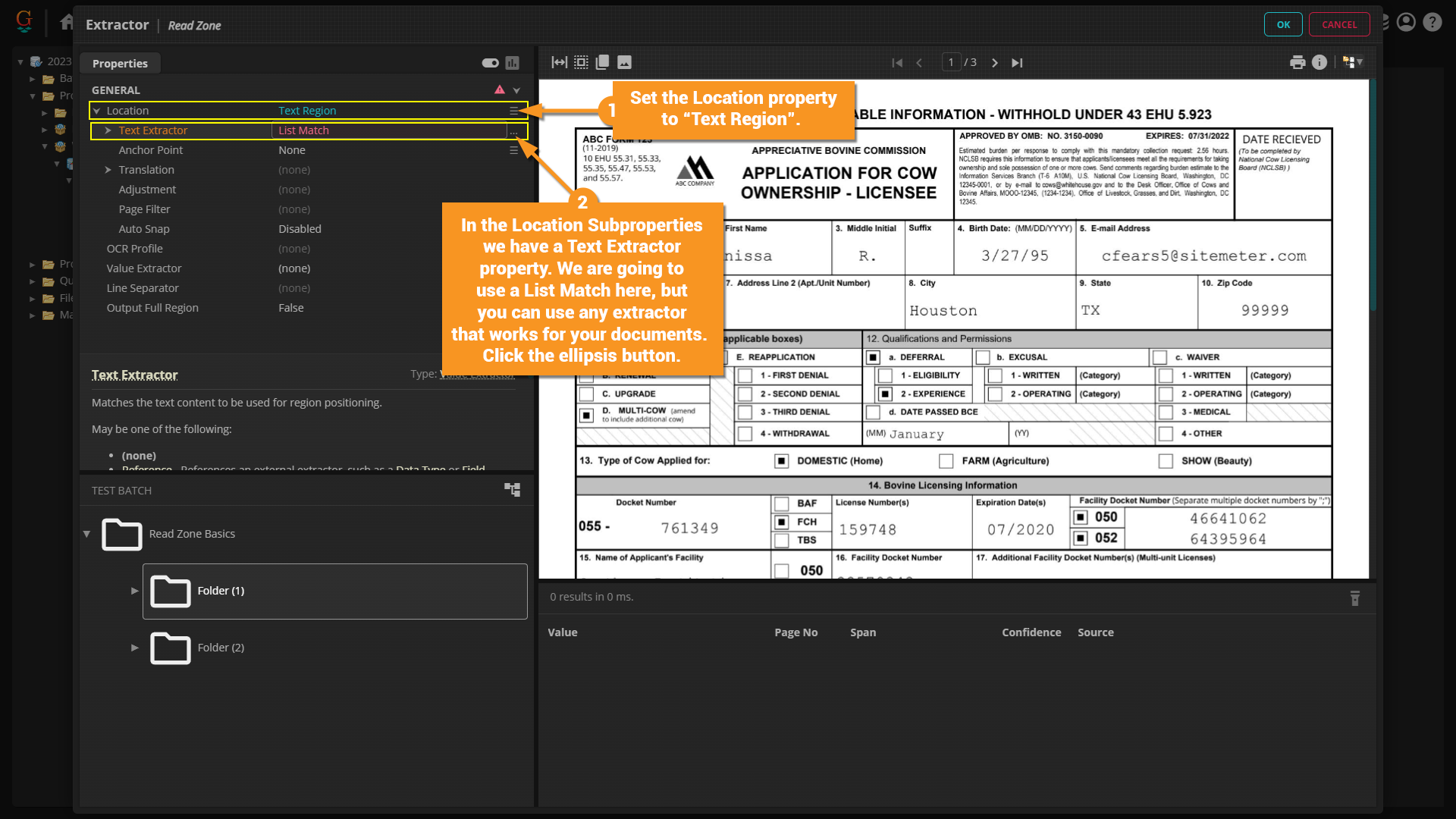

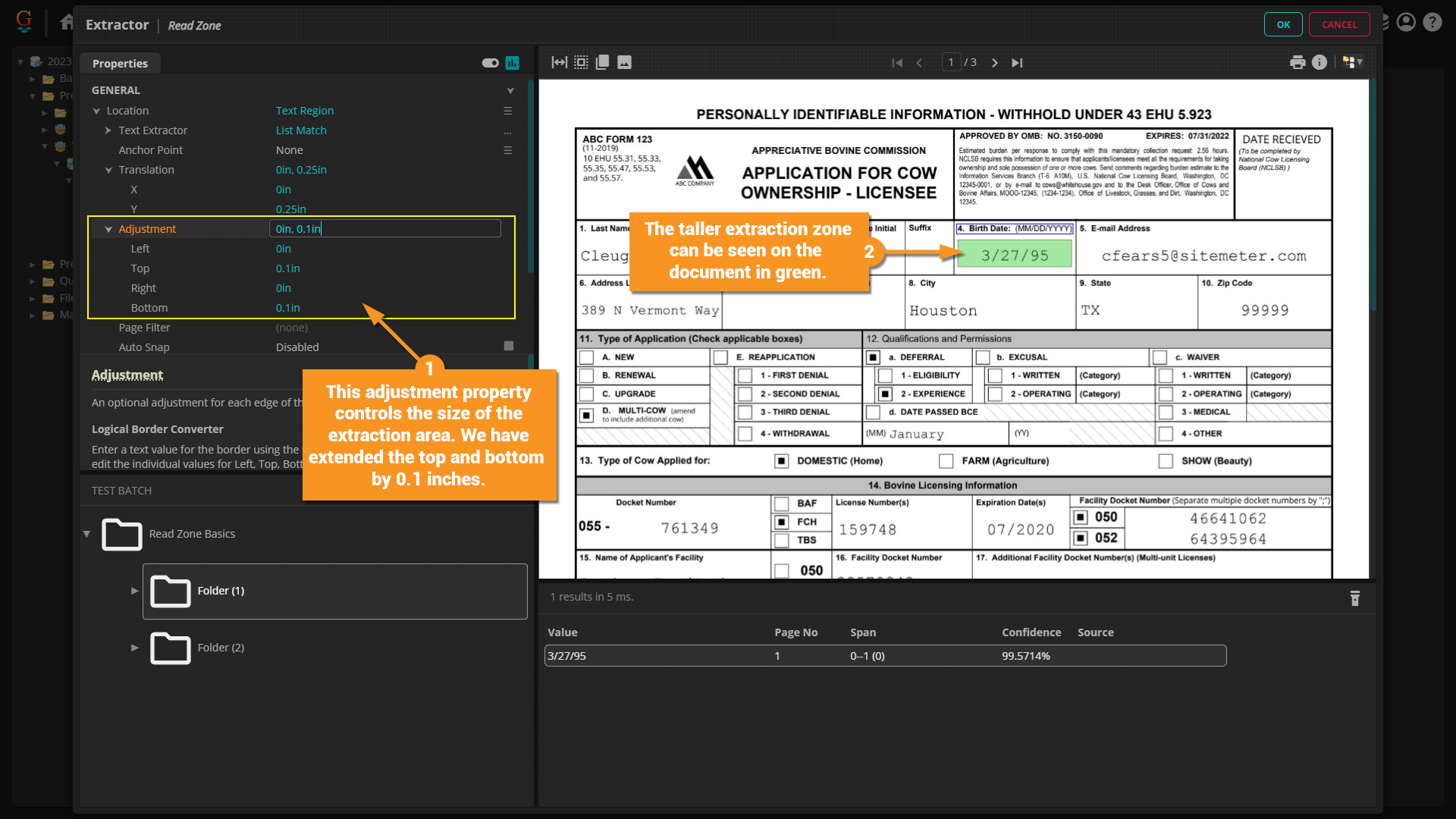

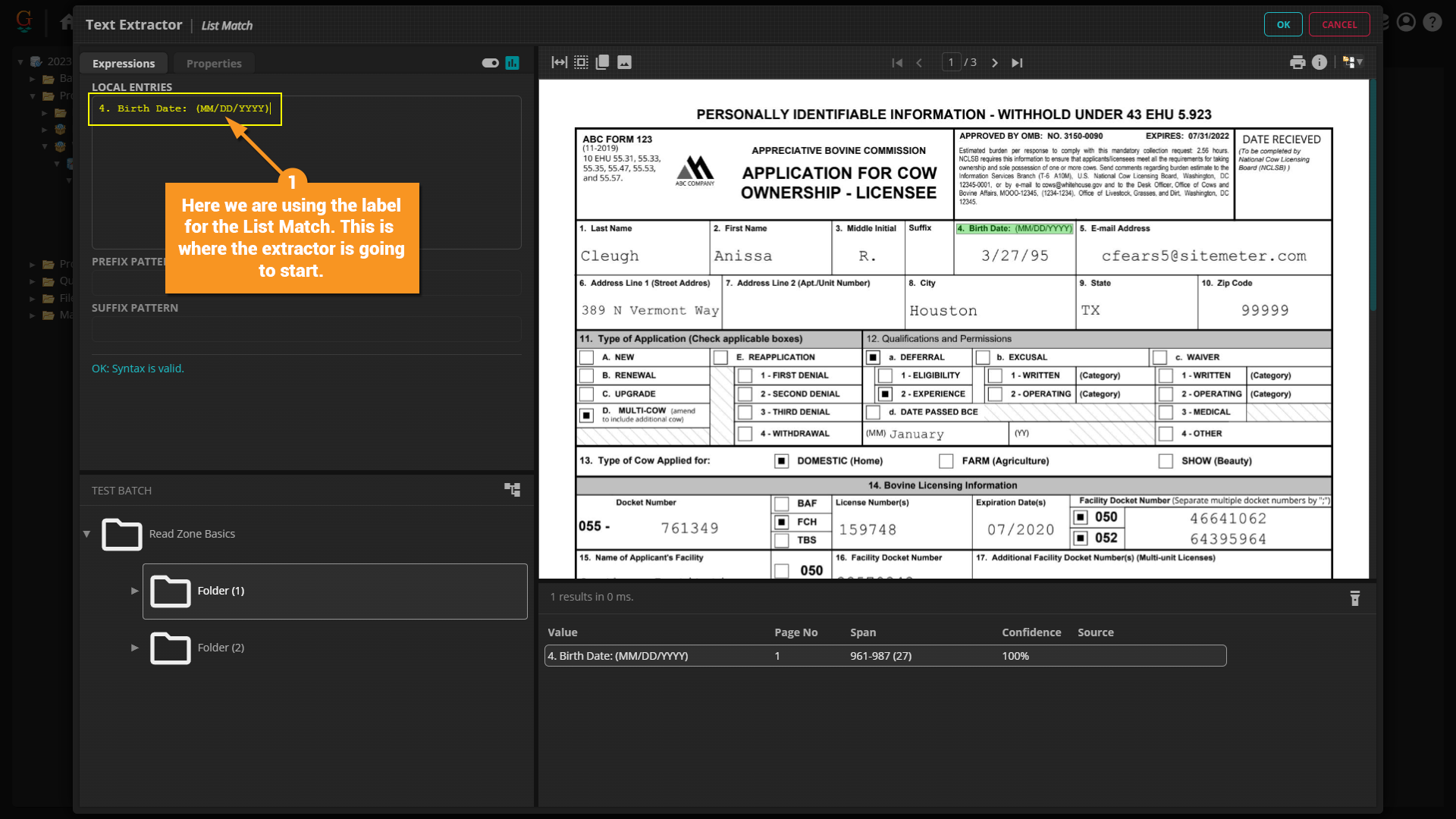

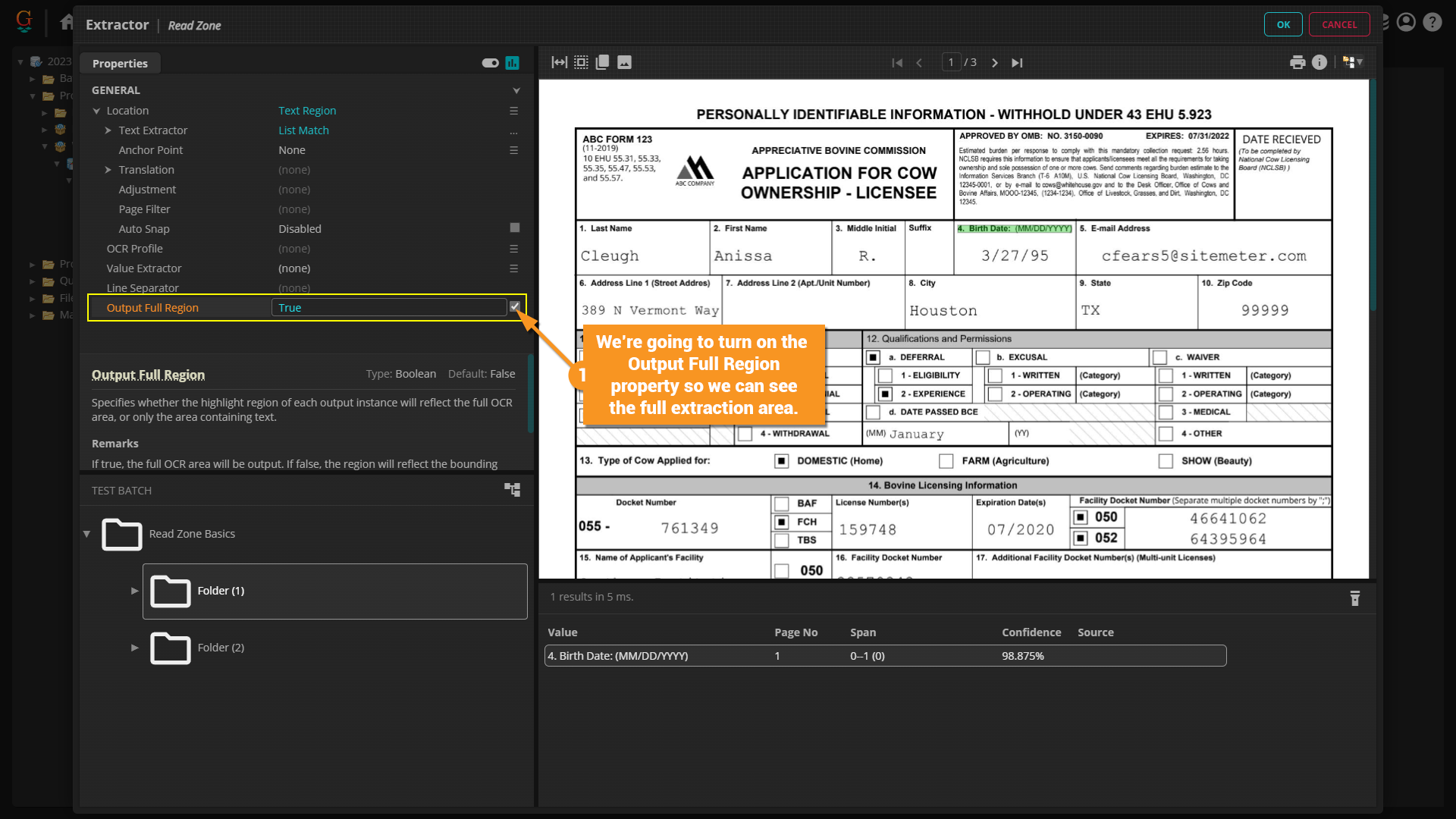

The Text Region option creates an extraction zone using the logical boundaries of an extraction result. This can return all the text falling within the boundaries of the rectangle around the extractor's result.

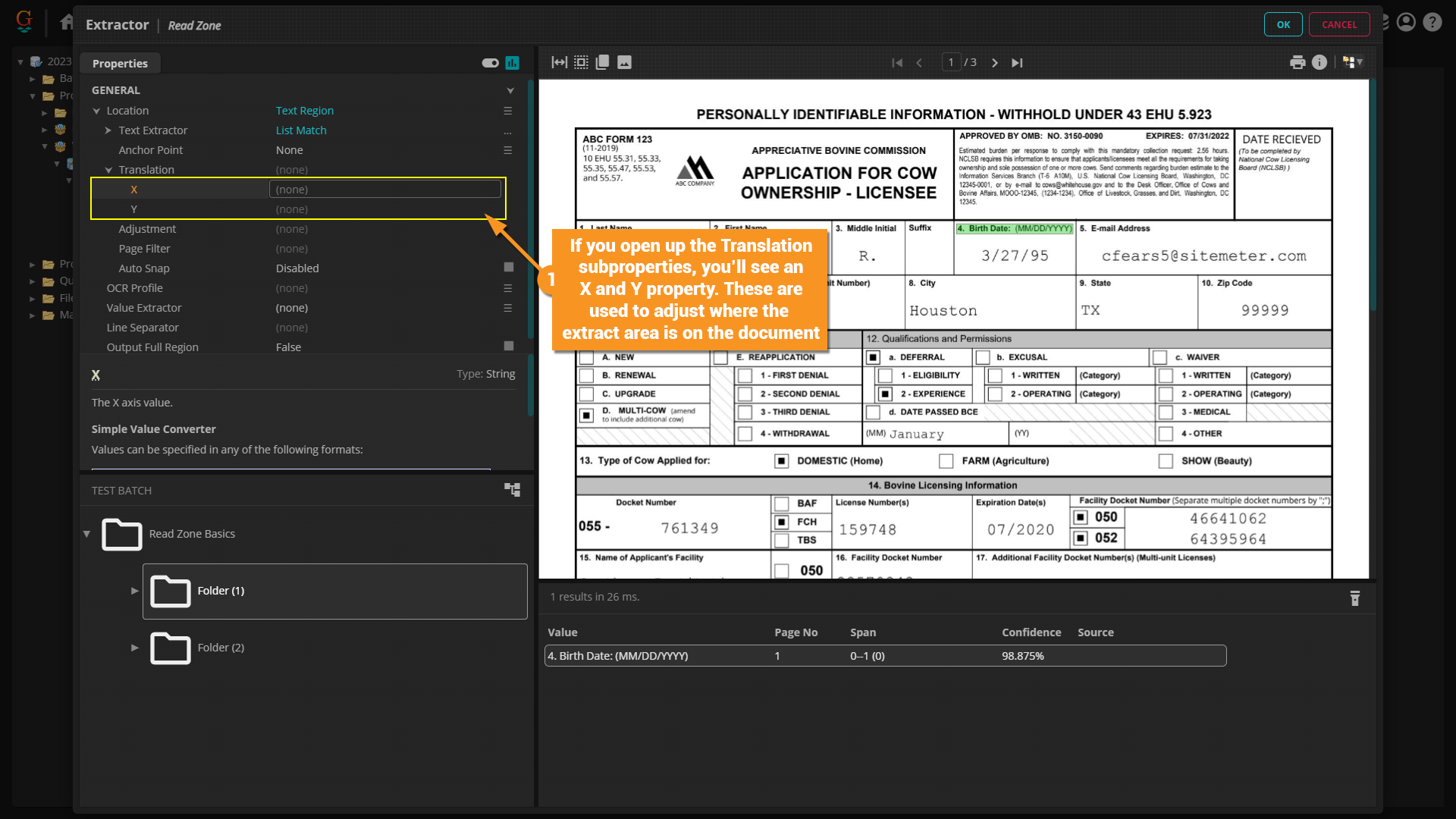

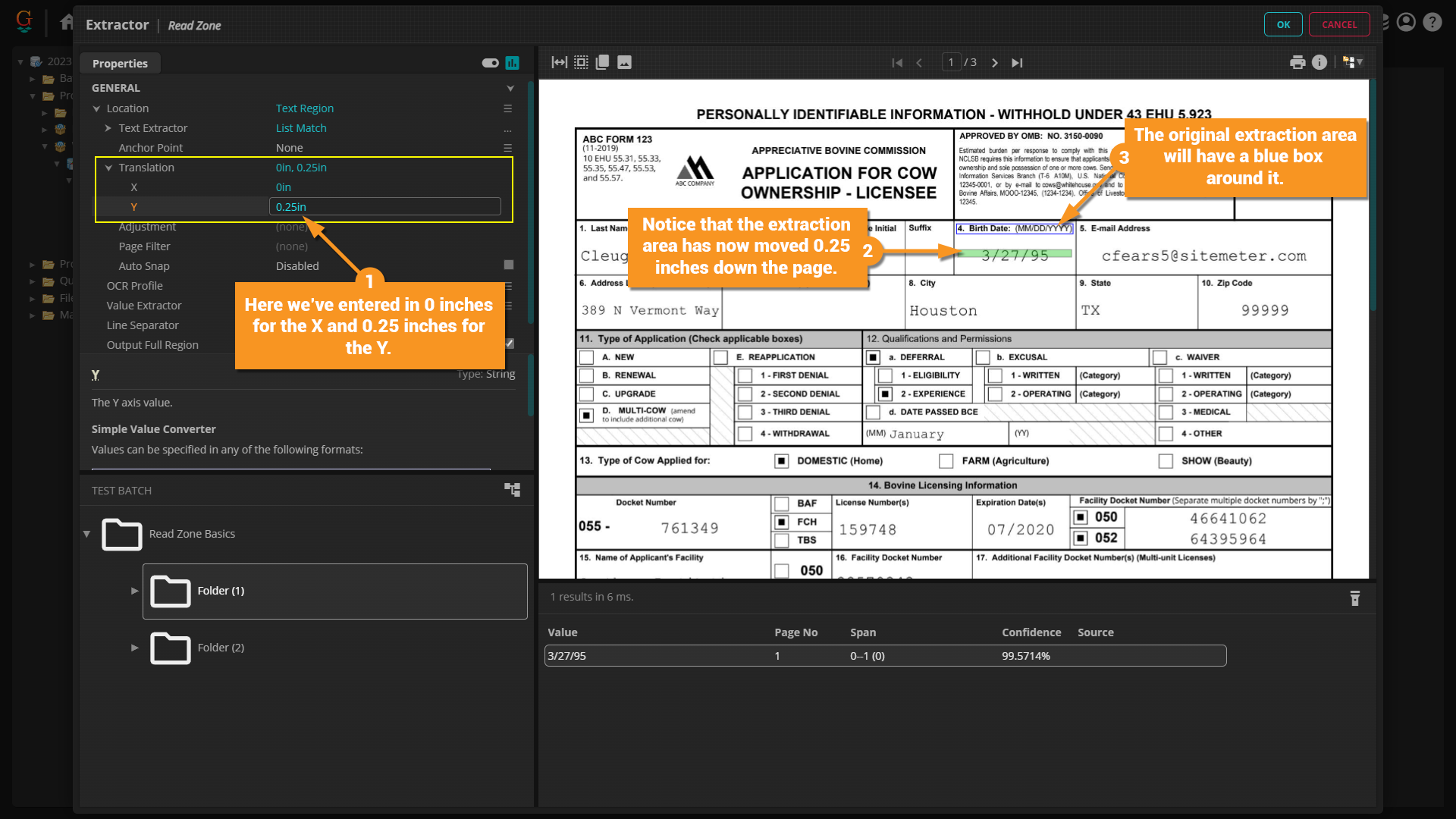

This can also be configured to provide results in a similar way the Relative Region option does, using text anchors located by an extractor to position the extraction zone's location. This means both methods can be used to position the zone relative to a point from document to document. The main difference is in how the zone is drawn.

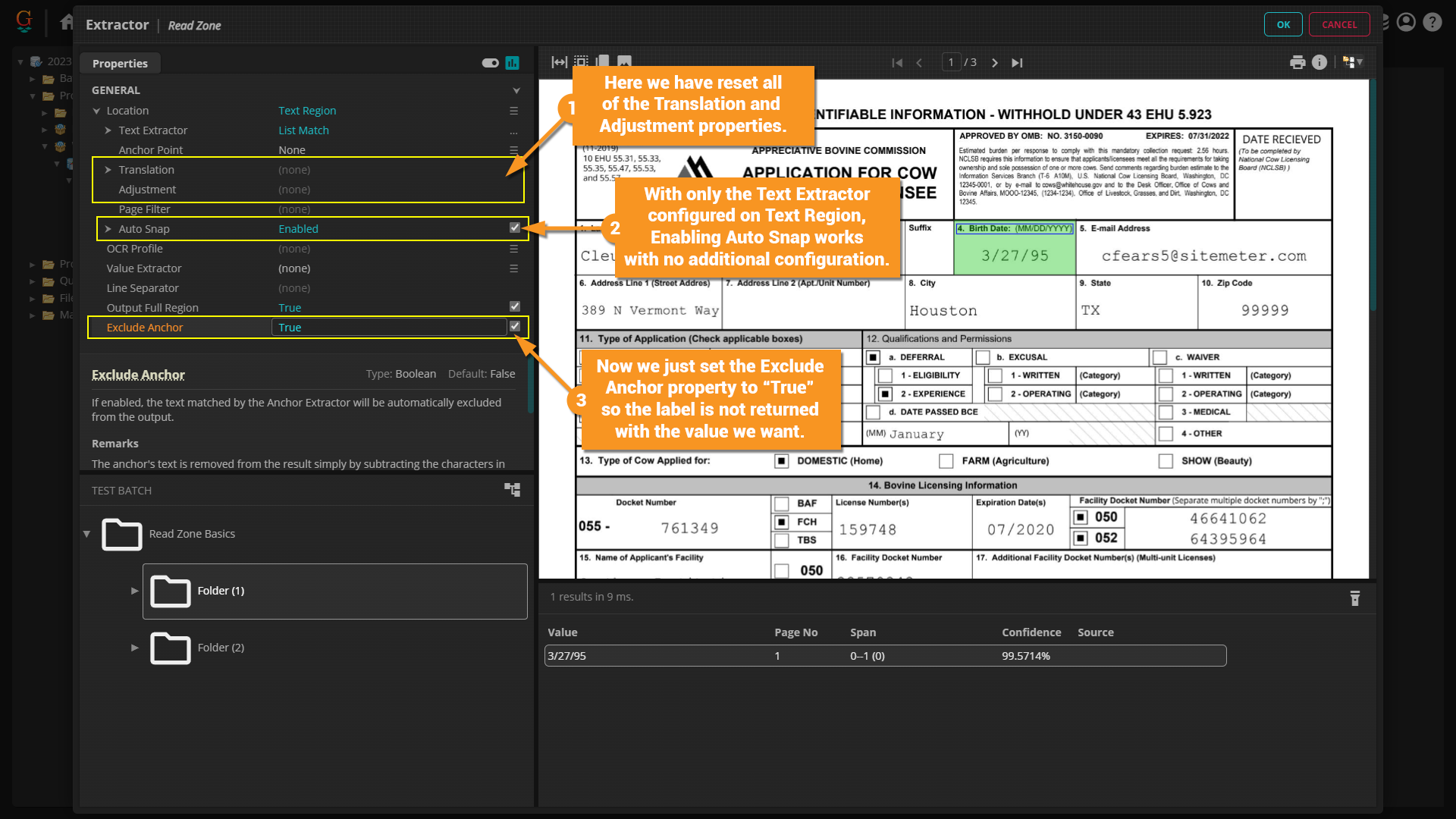

Now, it might seem that the Text Region extractor pretty much does the same thing as the Relative Region extractor, but with more steps... and you would be correct. Generally it is more advantageous to use Relative Region, but there is one thing that Text Region can do a little more easily and it involves Auto Snap.

Shape Region

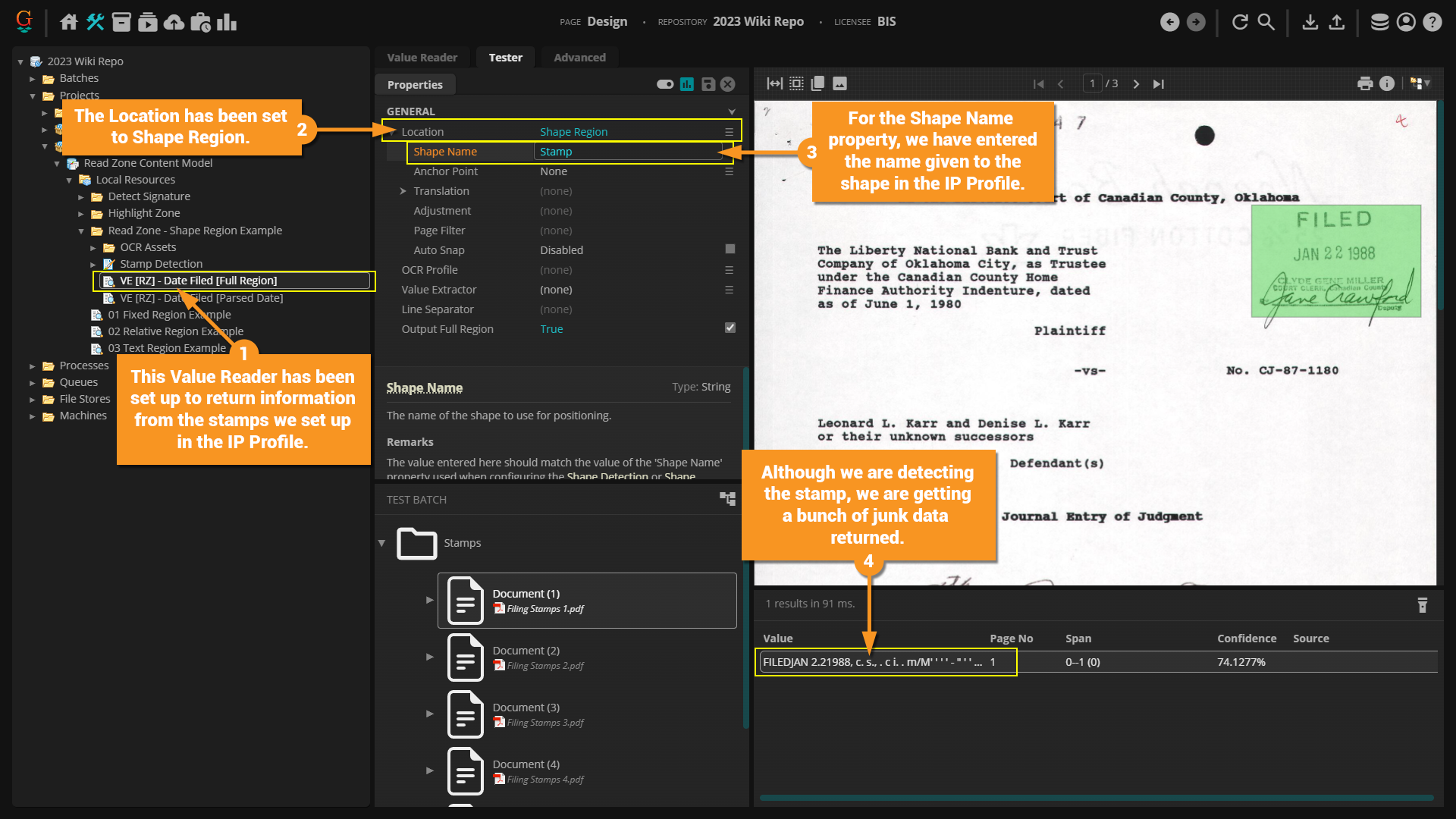

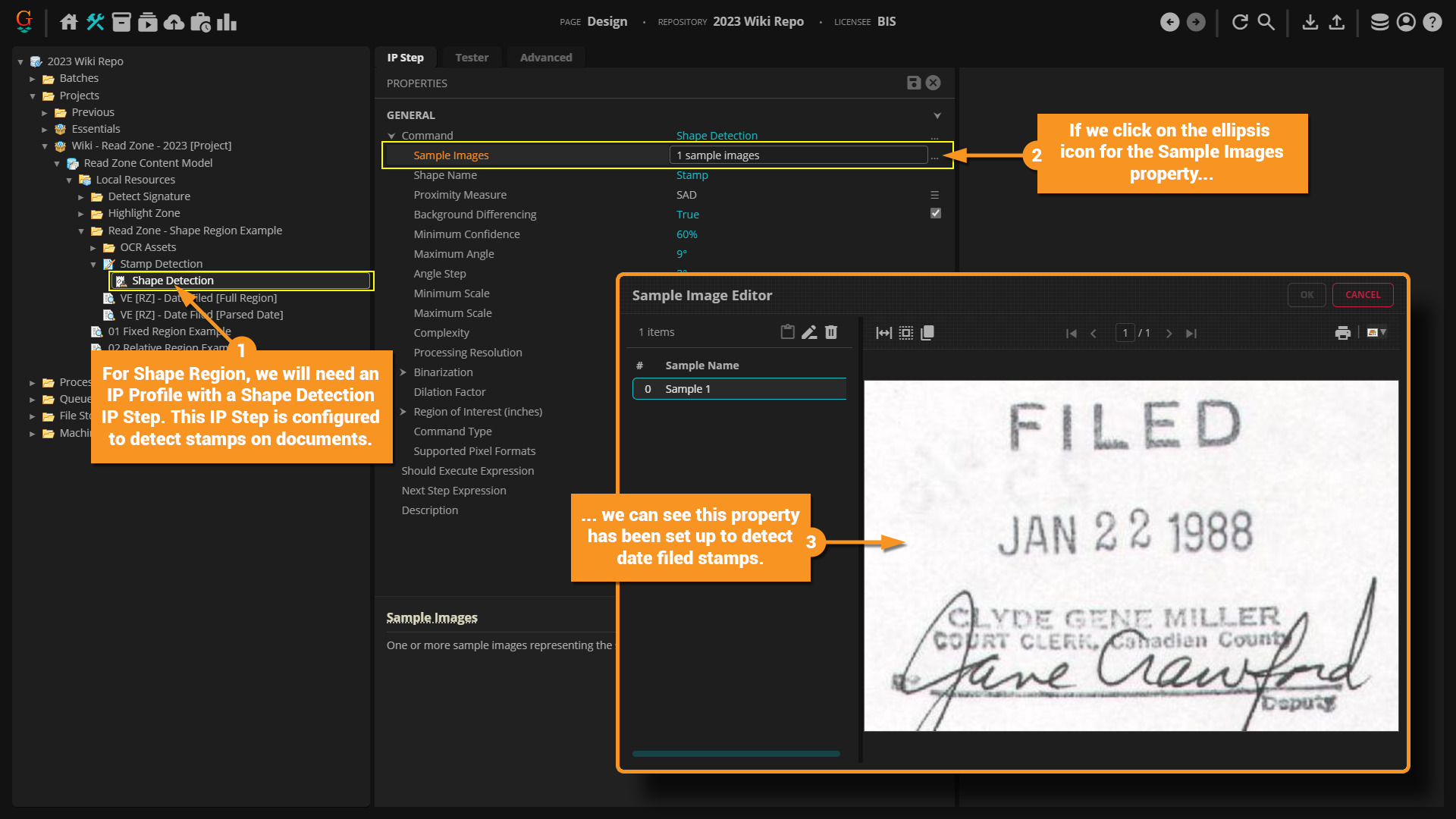

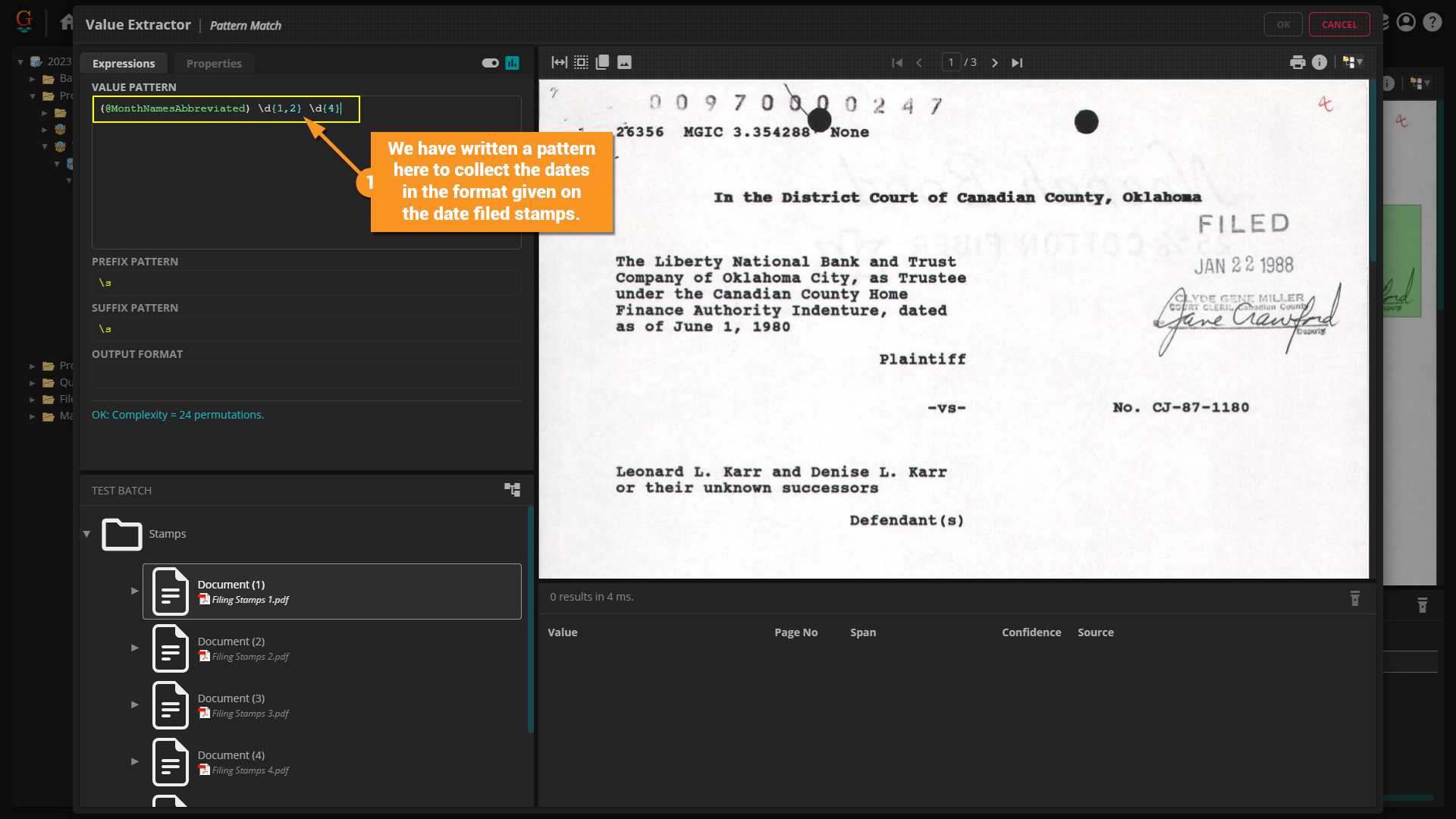

The Shape Region option is extremely similar to the Text Region option. However, instead of using text to anchor the extraction zone, it uses a shape detected from a Shape Detection or Shape Removal IP Command.

This is the least common method used.

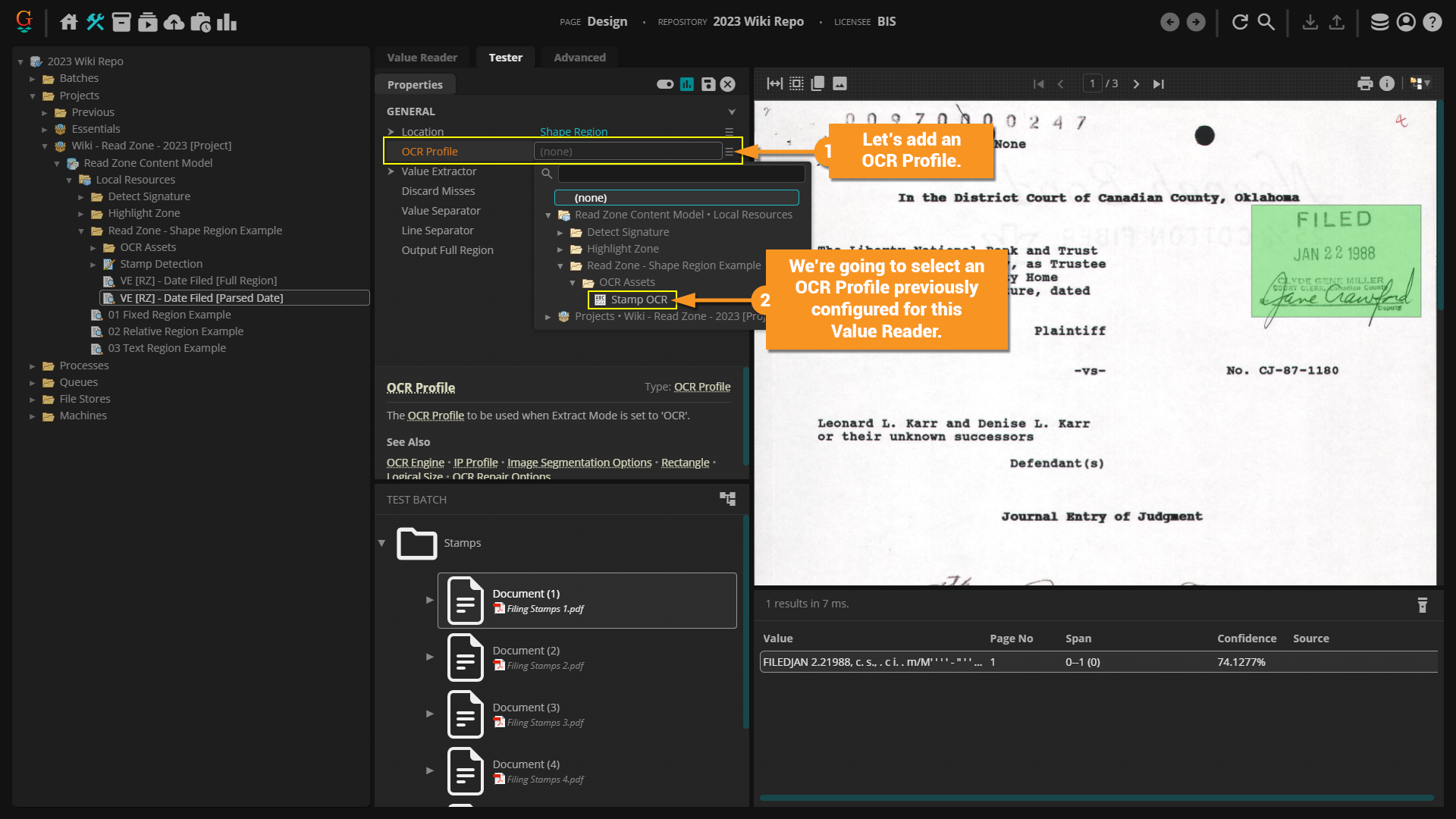

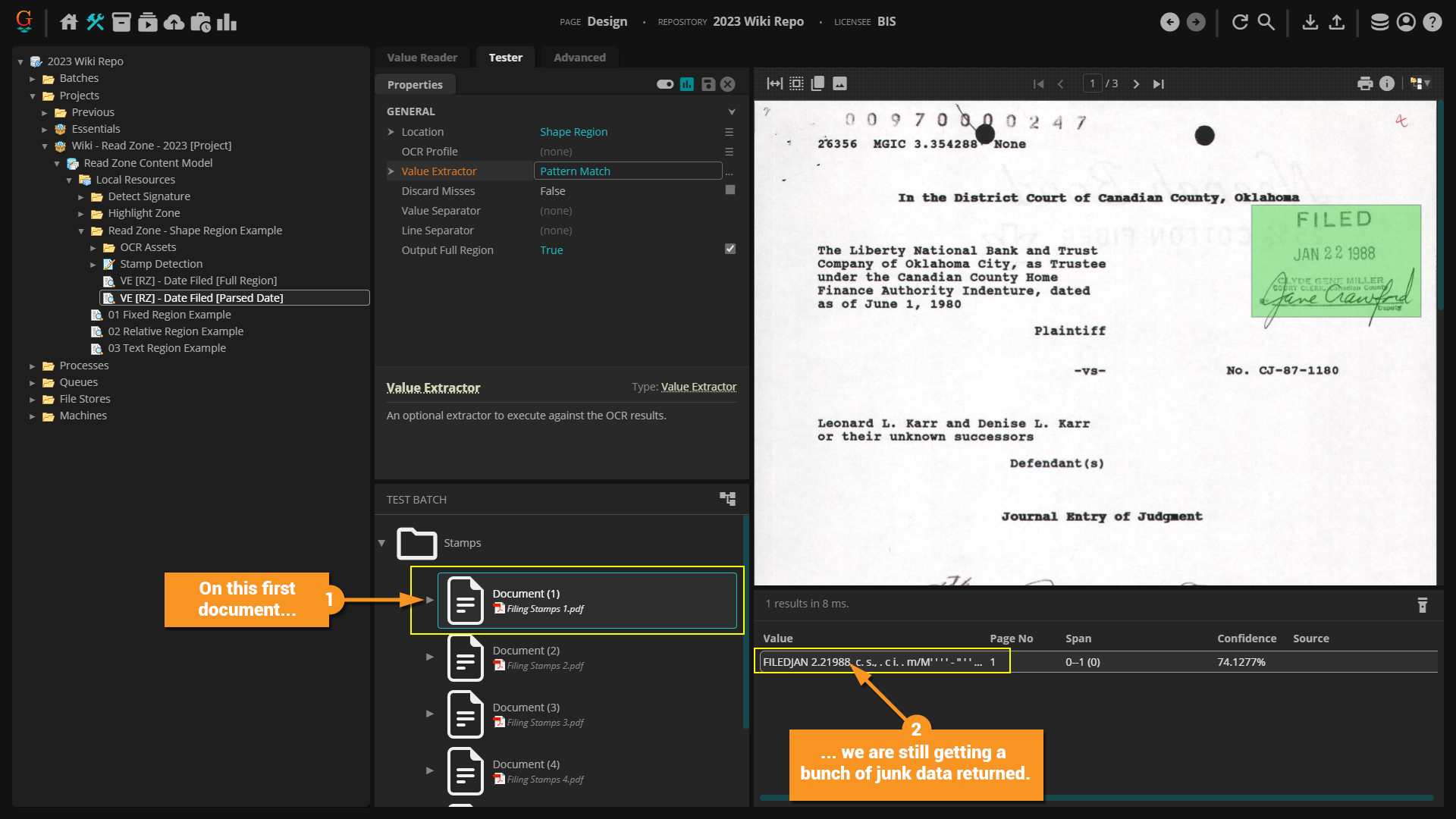

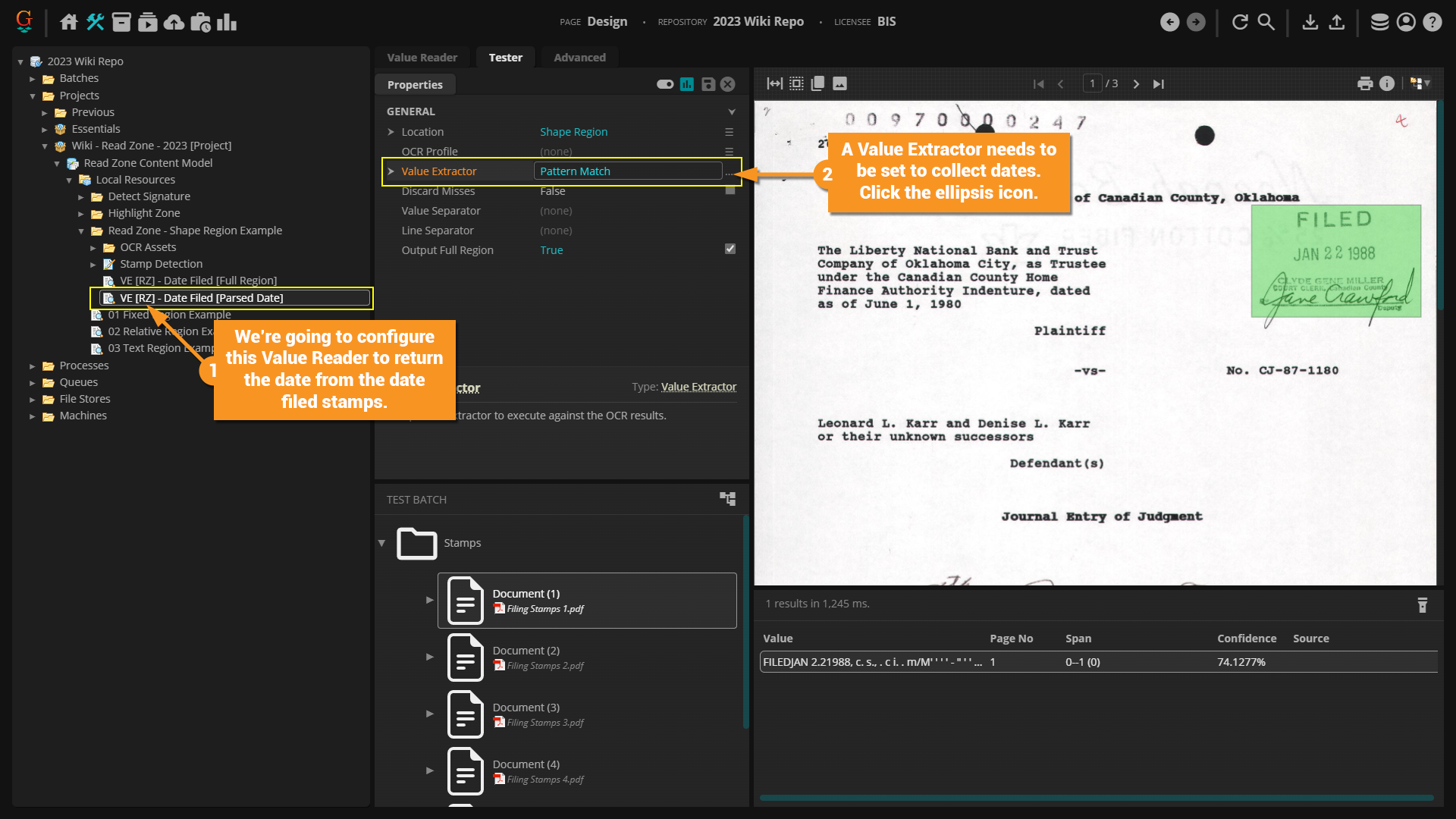

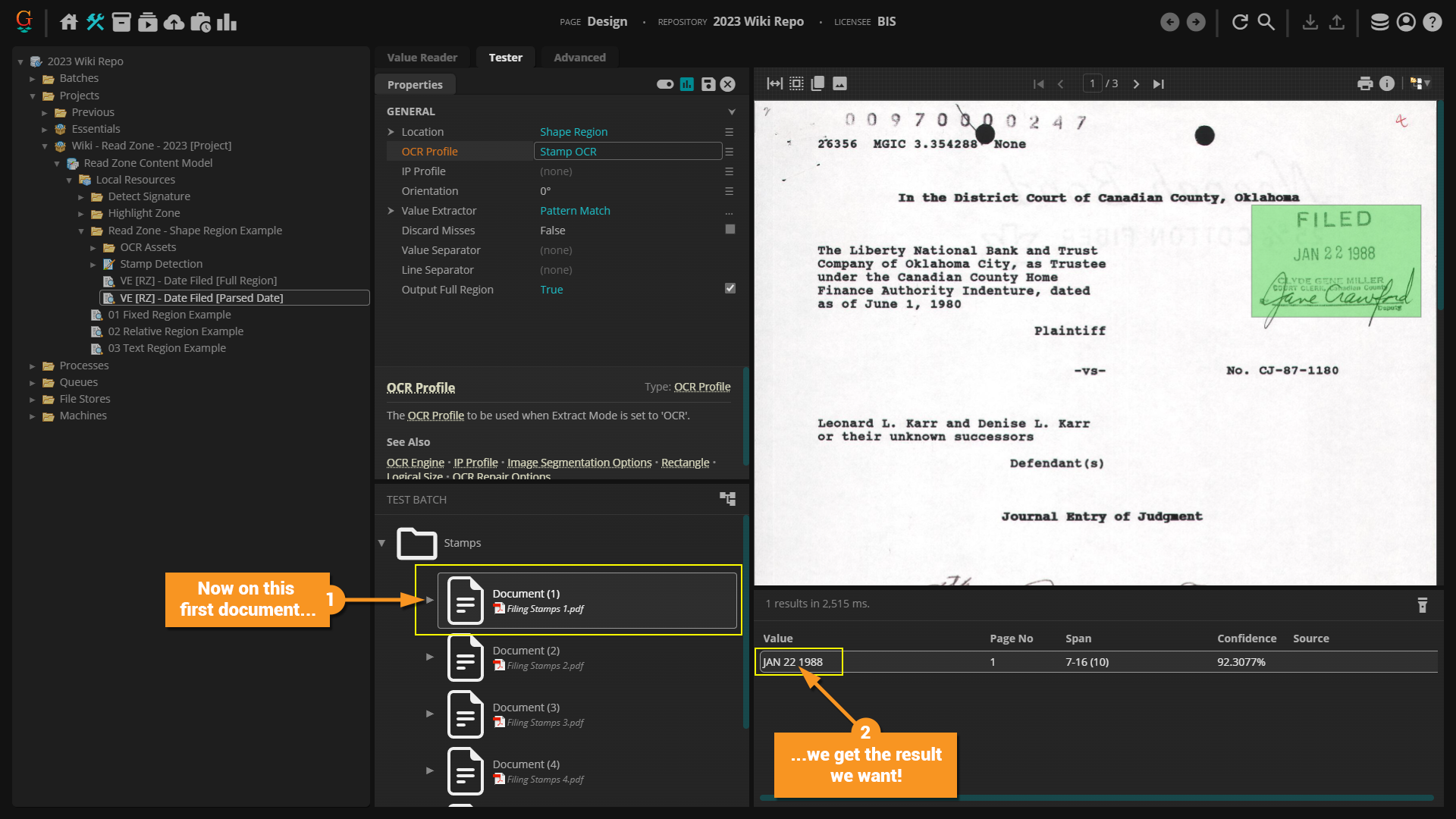

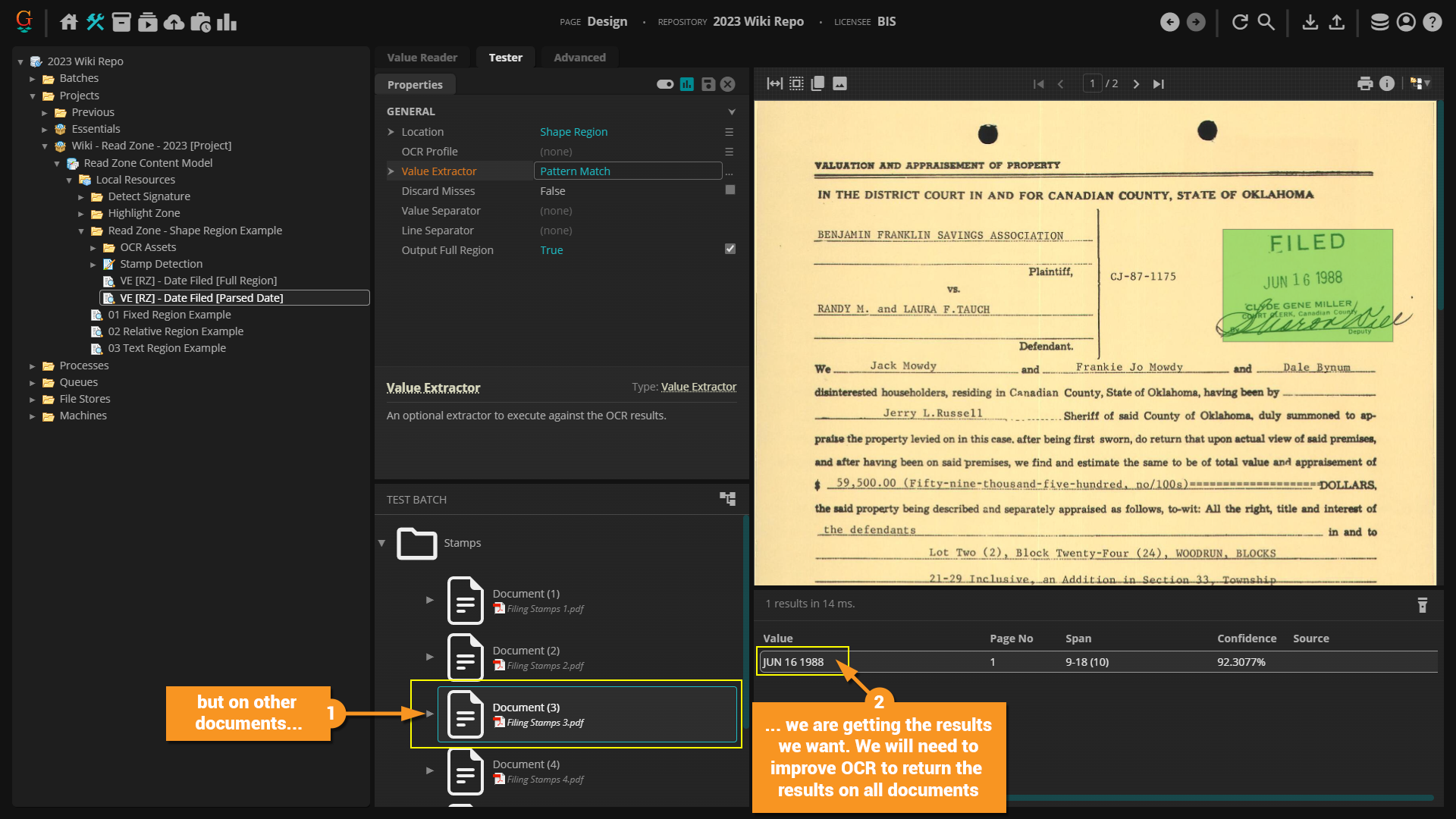

Running OCR on a smaller, more specific area can give more accurate results than running OCR on the whole page. We hope to improve the OCR of these stamps by adding an OCR Profile to the Value Reader we are configuring.
